Stiebel Eltron 3 Phase Electric Instantaneous Water Heater 50 Degree Unit (DEL Plus) White

DEL 13 PLUS
$1,799
  • Dispatches in 2-3 days
Rated Output:

14.5 kW

DEL 13 PLUS

19.4 kW

DEL 18 PLUS

27 kW

DEL 27 PLUS

The DEL Plus is suitable for supplying hot water to several draw-off points (single and group supply), e.g. simultaneous supply to bathroom and kitchen. Sealed unvented, pressure-tested appliance for use... Read more

Free Shipping On Orders $100+
Free Shipping On Orders $100+
Over 2200 happy customers
Over 2200 happy customers
Reputable Brand
Reputable Brand

The DEL Plus is suitable for supplying hot water to several draw-off points (single and group supply), e.g. simultaneous supply to bathroom and kitchen. Sealed unvented, pressure-tested appliance for use with all commercially available pressure taps. The DEL Plus water heater requires no safe tray, flue or ventilation.

Electronically controlled instantaneous water heater with 3i technology. Accurate temperature delivery up to the maximum output. Temperature selection from 20 to 50°C via rotary selector, temperature adjustment for showers in 0.5°C increments. Backlit multi-function display to show set temperature, current power consumption, status and service indication. Selectable ECO mode. Memory function for 2 programmable temperatures of choice. Pivoting appliance cover and programming unit for increased operating convenience in under-sink installations.

Saves energy and water by means of electronic output control with 3i technology. 3 sensors ensure that the selected temperature is accurately achieved. For this, only the actual required amount of energy is expended; there is no need to add cold water at the tap. This ensures maximum energy efficiency. ECO mode can be individually selected for economical operation. Suitable for preheated water (e.g. in solar thermal and heat pump systems).

Rapid bare wire heating system, suitable for hard and soft water. Electronic safety concept with air bubble detection

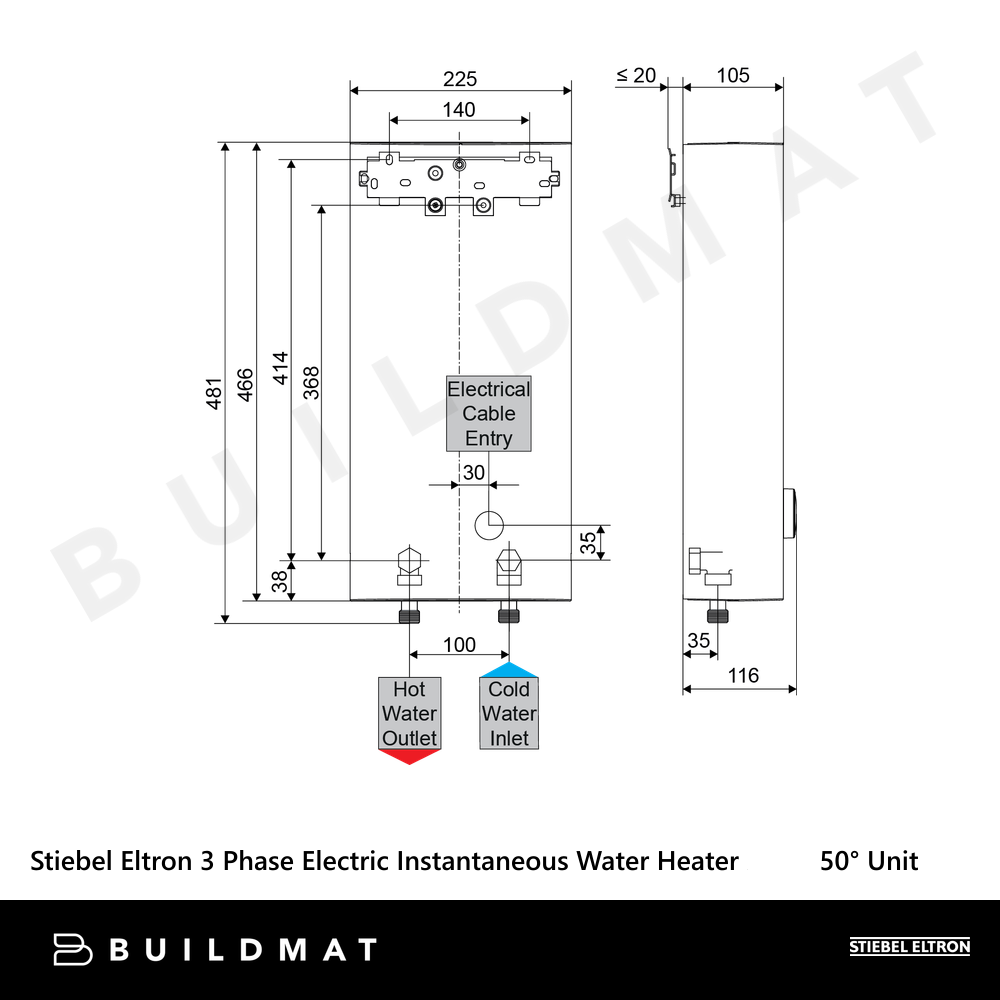

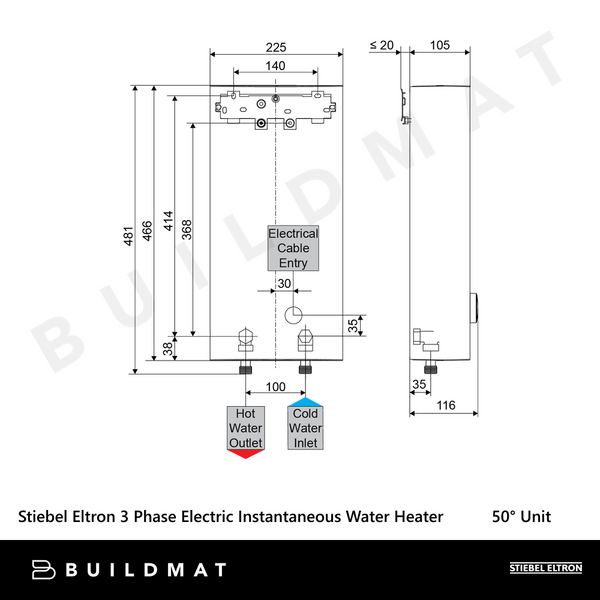

Technical Data

  • Height: 466mm
  • Width: 225mm
  • Depth: 116mm
  • Weight: 3.2kg
  • Colour: white
  • Nominal capacity: 0.4L
  • Approvals: WaterMark Lic No. WMKA00301, AS3498
  • For one/several draw off points: Yes/Yes
  • Heating system: Bare wire
  • Accepts pre-heated water (solar): Yes (incoming water must not exceed 50°C)
  • Programmable temperature: Yes
DEL 13 PLUS (14.5kW)
  • Rated output (415V): 14.5kW
  • Rated current (415V): 20 Amp
  • Phases: 3/PE
  • Electrical Installation: As per AS/NZS3000
  • Installation requirements: AS/NZS3500.4.2 & local requirements
  • Switch on flow rate (minimum flow rate required to switch on the water heater): 2.5L/min
  • Max. permissible pressure: 1 MPa
  • Temperature adjustment: 20-50°C
  • IP Rating: IP25 (IP24 at electrical connection finished walls)
DEL 18 PLUS (19.4kW)
  • Rated output (415V): 19.4kW
  • Rated current (415V): 27 Amp
  • Phases: 3/PE
  • Electrical Installation: As per AS/NZS3000
  • Installation requirements: AS/NZS3500.4.2 & local requirements
  • Switch on flow rate (minimum flow rate required to switch on the water heater): 2.5L/min
  • Max. permissible pressure: 1 MPa
  • Temperature adjustment: 20-50°C
  • IP Rating: IP25 (IP24 at electrical connection finished walls)

DEL 27 PLUS (27kW)
  • Rated output (415V): 28kW
  • Rated current (415V): 38.9 Amp
  • Phases: 3/PE
  • Electrical Installation: As per AS/NZS3000
  • Installation requirements: AS/NZS3500.4.2 & local requirements
  • Switch on flow rate (minimum flow rate required to switch on the water heater): 2.5L/min
  • Max. permissible pressure: 1 MPa
  • Temperature adjustment: 20-50°C
  • IP Rating: IP25 (IP24 at electrical connection finished walls)
SKU:
DEL 13 PLUS
Boxed Weight:
0.0 kg

Buildmat is offering Free Shipping Australia Wide on kitchen sinks.

Buildmat offers free shipping for all orders over $100.
All our orders are shipped from our Melbourne warehouse and are dispatched next business day.

Shipping time estimates are listed below. if you're really worried about delivery times feel free to call us and we can give you a more accurate estimate and also let you know who our courier for your area is.

Melbourne
1-3 business days
Sydney
2-5 business days
Adelaide
2-5 business days
Brisbane
2-7 business days
Canberra
2-5 business days
Hobart
2-7 business days
Darwin
3-10 business days
Perth
3-10 business days
Regional victoria
1-3 business days
Interstate regional areas
3-10 business days

The DEL Plus is suitable for supplying hot water to several draw-off points (single and group supply), e.g. simultaneous supply to bathroom and kitchen. Sealed unvented, pressure-tested appliance for use with all commercially available pressure taps. The DEL Plus water heater requires no safe tray, flue or ventilation.

Electronically controlled instantaneous water heater with 3i technology. Accurate temperature delivery up to the maximum output. Temperature selection from 20 to 50°C via rotary selector, temperature adjustment for showers in 0.5°C increments. Backlit multi-function display to show set temperature, current power consumption, status and service indication. Selectable ECO mode. Memory function for 2 programmable temperatures of choice. Pivoting appliance cover and programming unit for increased operating convenience in under-sink installations.

Saves energy and water by means of electronic output control with 3i technology. 3 sensors ensure that the selected temperature is accurately achieved. For this, only the actual required amount of energy is expended; there is no need to add cold water at the tap. This ensures maximum energy efficiency. ECO mode can be individually selected for economical operation. Suitable for preheated water (e.g. in solar thermal and heat pump systems).

Rapid bare wire heating system, suitable for hard and soft water. Electronic safety concept with air bubble detection

Technical Data

  • Height: 466mm
  • Width: 225mm
  • Depth: 116mm
  • Weight: 3.2kg
  • Colour: white
  • Nominal capacity: 0.4L
  • Approvals: WaterMark Lic No. WMKA00301, AS3498
  • For one/several draw off points: Yes/Yes
  • Heating system: Bare wire
  • Accepts pre-heated water (solar): Yes (incoming water must not exceed 50°C)
  • Programmable temperature: Yes
DEL 13 PLUS (14.5kW)
  • Rated output (415V): 14.5kW
  • Rated current (415V): 20 Amp
  • Phases: 3/PE
  • Electrical Installation: As per AS/NZS3000
  • Installation requirements: AS/NZS3500.4.2 & local requirements
  • Switch on flow rate (minimum flow rate required to switch on the water heater): 2.5L/min
  • Max. permissible pressure: 1 MPa
  • Temperature adjustment: 20-50°C
  • IP Rating: IP25 (IP24 at electrical connection finished walls)
DEL 18 PLUS (19.4kW)
  • Rated output (415V): 19.4kW
  • Rated current (415V): 27 Amp
  • Phases: 3/PE
  • Electrical Installation: As per AS/NZS3000
  • Installation requirements: AS/NZS3500.4.2 & local requirements
  • Switch on flow rate (minimum flow rate required to switch on the water heater): 2.5L/min
  • Max. permissible pressure: 1 MPa
  • Temperature adjustment: 20-50°C
  • IP Rating: IP25 (IP24 at electrical connection finished walls)

DEL 27 PLUS (27kW)
  • Rated output (415V): 28kW
  • Rated current (415V): 38.9 Amp
  • Phases: 3/PE
  • Electrical Installation: As per AS/NZS3000
  • Installation requirements: AS/NZS3500.4.2 & local requirements
  • Switch on flow rate (minimum flow rate required to switch on the water heater): 2.5L/min
  • Max. permissible pressure: 1 MPa
  • Temperature adjustment: 20-50°C
  • IP Rating: IP25 (IP24 at electrical connection finished walls)
SKU:
DEL 13 PLUS
Boxed Weight:
0.0 kg
