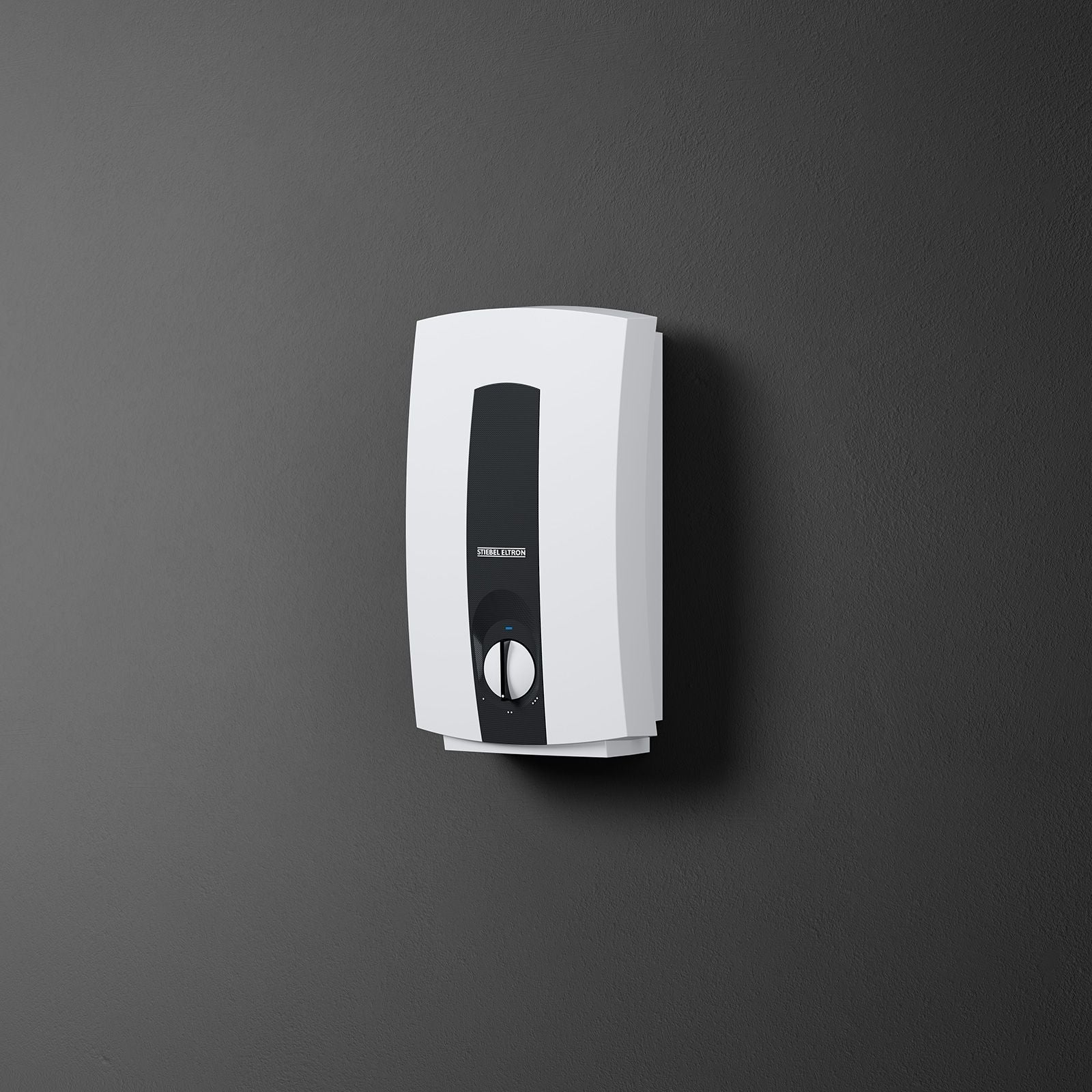

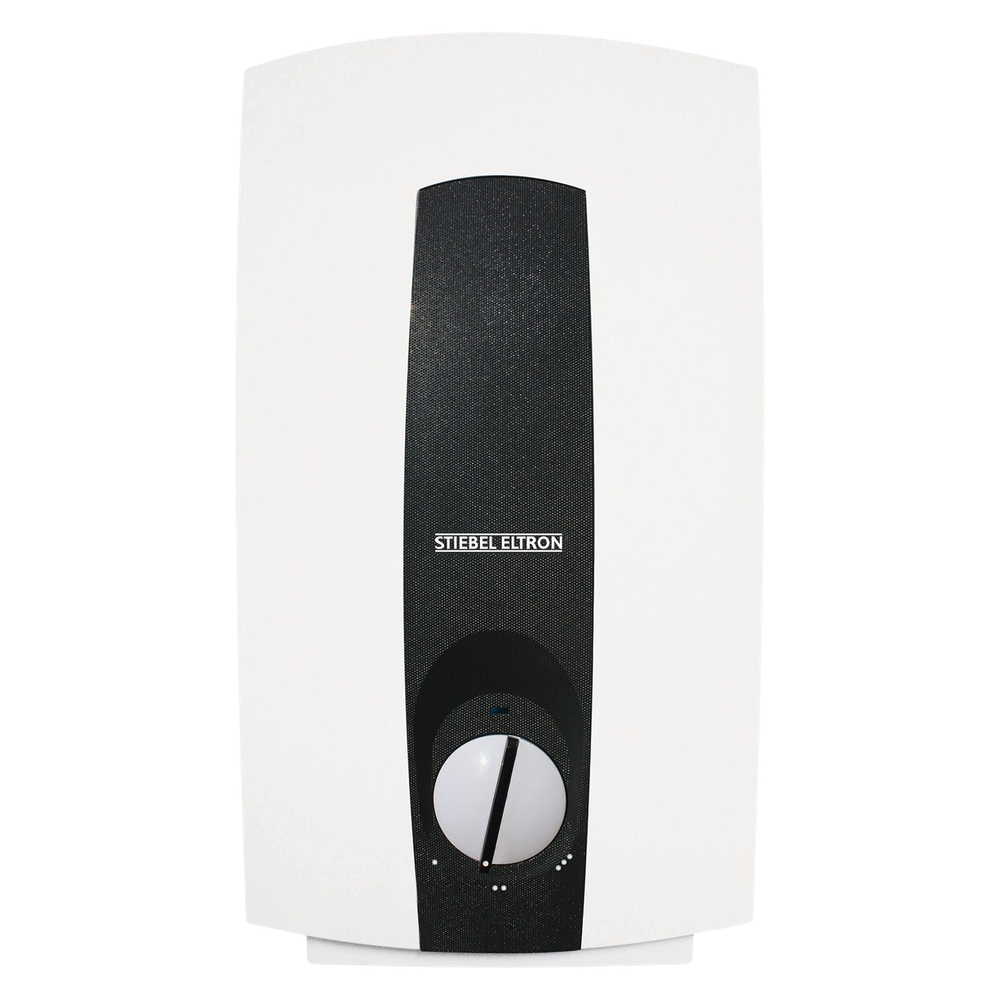

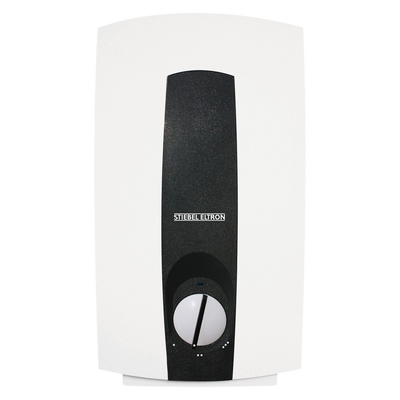

Stiebel Eltron 1 Phase Electric Instantaneous Water Heater (9.5Kw 60 Degree Unit)

Single phase flexibility

The electronically controlled DHCE single phase instantaneous water heaters from STIEBEL ELTRON. These single phase instant hot water systems are ideal for low flow installations as the water heater has a switch on flow rate at only 1.5 litres per minute. With installation flexibility in mind, the DHCE hot water system is compact in design and ideal for those applications where space is tight.

Product Features:

• Ideal for low flow applications with a switch-on flow rate of only 1.5 L/min
• Three selectable temperatures for greater convenience
• For use at one or several draw off points
• Compact design for flexible installation
• No safe tray, flue or ventilation required

High quality design

• Electronically controlled
• Three selectable temperature outputs for greater convenience
• Tubular heating element
• WaterMark approved, Lic. No. WMKA21273, AS3498

Installation flexibility

• Delivers up to 60 degree Celsius hot water
• No safe tray or drainage required (check local regulations)
• Space saving compact design

Efficiency

The DHCE compact water heater is electronically controlled which helps to save energy and water compared to older style hydraulically controlled instantaneous water heaters.

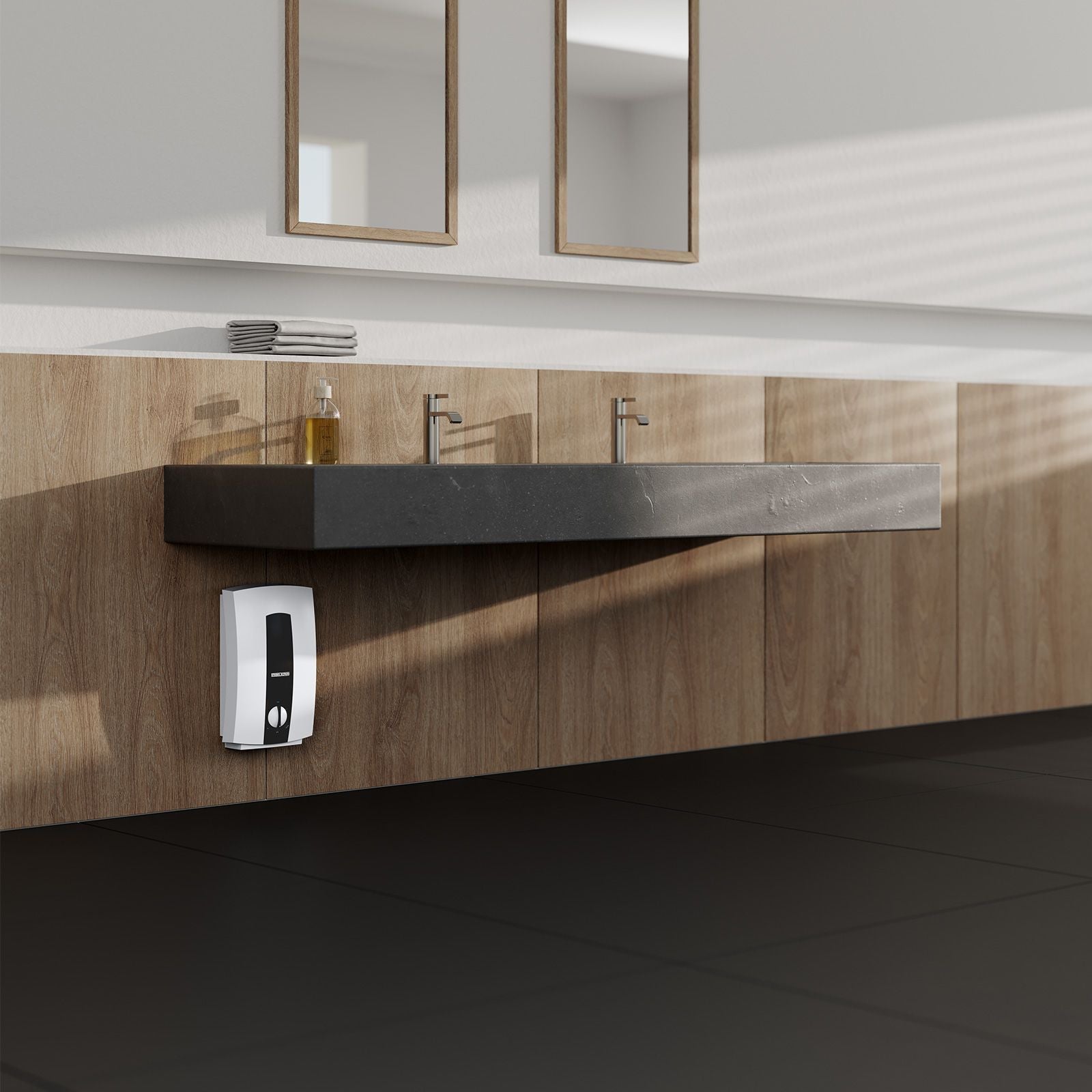

The compact design of the DHCE is ideal for close to the point of use installation and also helps save water and energy by reducing the lag time for hot water to arrive at the outlet.

Available in the following electrical size:

• DHCE 8/60 - 9.5kW, 40 Amps, single phase 240V

Warranty

• 5 Year full parts and labour domestic warranty*

Technical Data

• Rated output (240V): 9.5kW
• Rated current (240V): 40Amp
• Phases: 1/N/PE/AC 220..240V
• Electrical Installation: As per AS/NZS3000
• Installation requirements: AS/NZS3500.4.2 & local requirements
• Switch on flow rate (minimum flow rate required to switch on the water heater): 1.5L/min
• Permissible operating pressure: 1000kPa
• Temperature adjustment: 40°C 50°C 60°C
• IP Rating: IP25

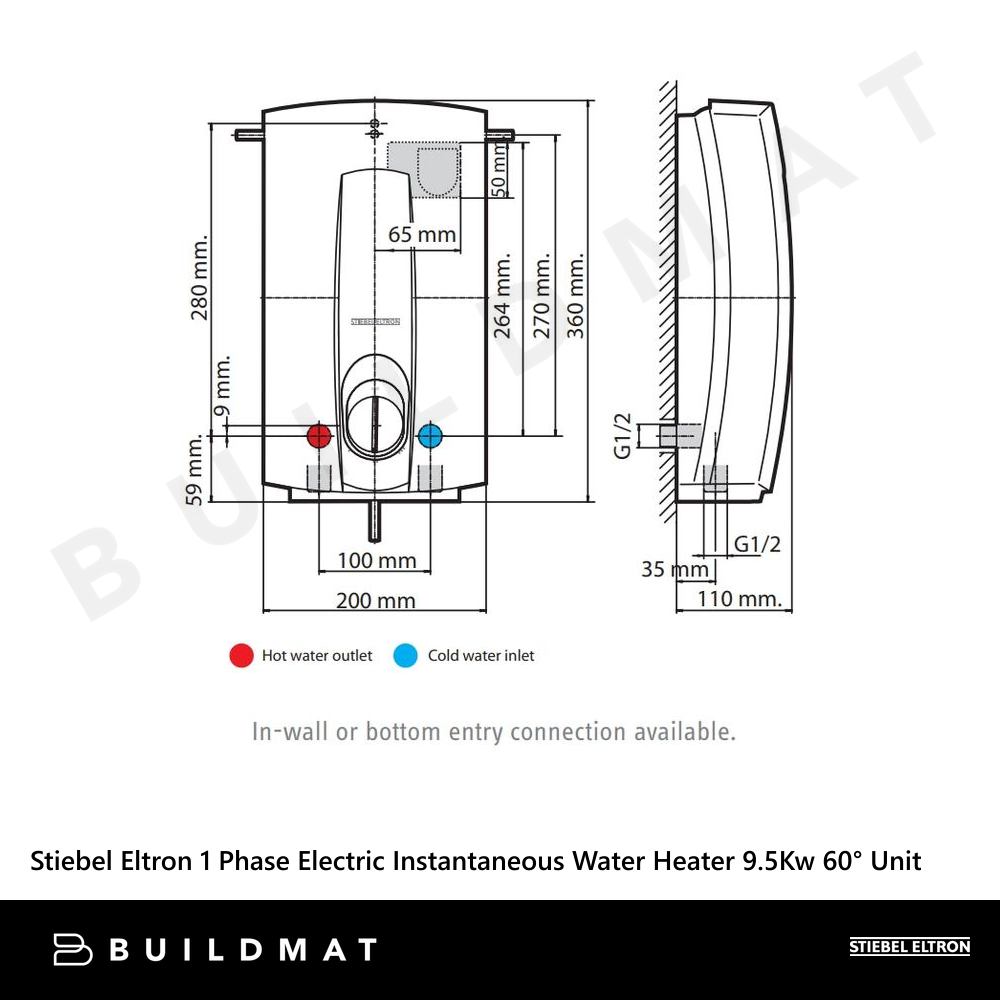

• Height: 360mm
• Width: 200mm
• Depth: 110mm
• Weight (filled with water): 2.45kg
• Colour: white
• Nominal capacity: 0.45L
• Approvals: WaterMark Lic No. WMKA21273, AS3498
• For one/several draw off points: Yes/Yes
• Heating system: Tubular
• Electronic flow rate control: No
• Electronic air detection system: No
• Accepts pre-heated water (solar): No
• Programmable temperature: No
