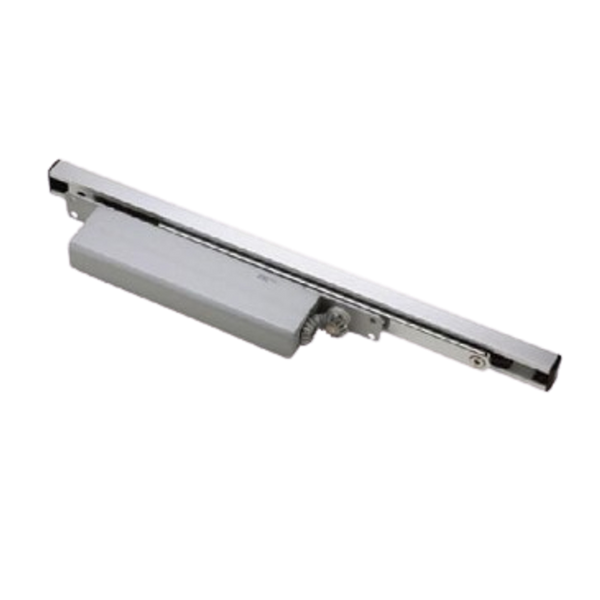

Zanda Concealed Cam Action Closer Silver

The ITS11204 Concealed Door Closer provides discreet, reliable closing without affecting the door's appearance. Fully concealed within the top of the door or frame when closed, its slim, non-handed cam action design offers EN 2-4 adjustable power and easy opening with reliable closing performance.

Suitable for timber and metal doors, the ITS11204 is ideal for internal, external and heavy-duty applications, including hospitals, care homes and schools where accessibility and aesthetics are important.

Product Features:

• Cam Action Mechanism
• EN2-4 Power Size
• Adjustable closing speed
• Adjustable latch action
• Max Door Wide: (1100mm)
• Mas Door Weight: (80kg)
• Opening Angle: 120 degrees
• Minimum door thickness: 44mm
• Non handed, suitable for LH and RF doors
• 10 year guarantee

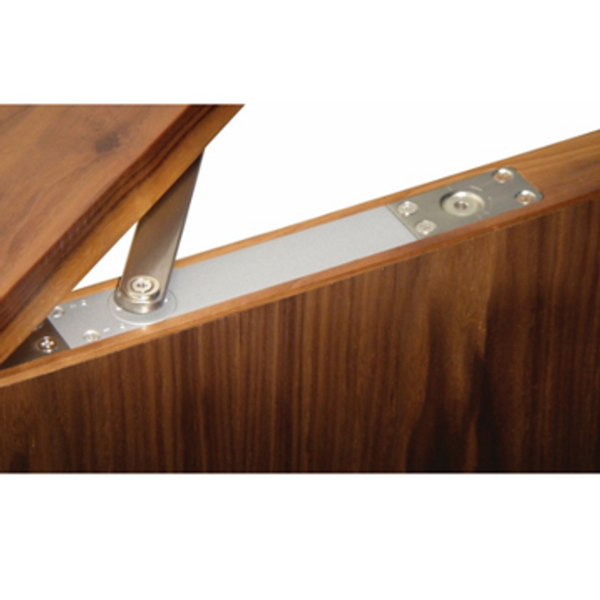

• Totally concealed when the door is closed

Benefits:

• Greater proportion of wood left in the door
• Ease and speed of fitting
• Fire tested for multiple applications
• Latched or unlatched
• No shadowing through from the cut out

Features:

Suitable for 44mm FD30 doors: One of the slimmest concealed closers, with a 32mm-wide mechanism once the intumescent kit is fitted. Allows installation on 44mm doors without visible shadowing or "ghosting" on the timber face.

Fire and smoke tested: Passes smoke testing without additional smoke fins on the connector bar. The intumescent material acts as the smoke seal while maintaining a clean, coordinated appearance.

PowerLatch closing: Provides a firm, positive latch to help prevent doors from being affected by air movement, through-drafts or air conditioning.

Durable valve controls: Features sturdy screwdriver-operated adjustment valves instead of small Allen Key-type brass valves, providing reliable adjustment and long-term durability.
