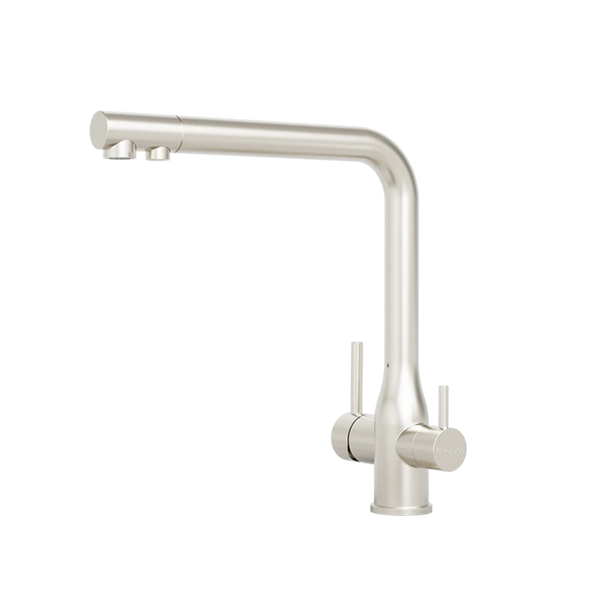

Puretec Tripla Elite 20 Square Three-Way Mixer Brushed Nickel

Stylish & contemporary design, the Puretec Tripla ELITE-20BN-LF mixer tap has 3-way functionality. The dual-handle mixer tap delivers normal hot and cold water function from the larger handle, and filtered rain/mains water runs from the separate filtered water line using the small handle lever. With two dedicated outlets and separate inner tubes, the design ensures there is absolutely no mixing of filtered or unfiltered water. What gives the Tripla Elite mixer tap range its point of difference is the full stainless steel construction and PVD (Physical Vapour Deposition) outer coating for durability and resistance to abrasions, scratches and corrosion. The Tripla ELITE-20BN-LF suits with the Puretec Z1 water filter, this tap incorporates Ultra Z filtration technology to help reduce contaminants.

Available in five contemporary colours, the range adds a modern, stylish accent to suit any kitchen design.

 SPECIFICATIONS

• Model No: ELITE-20BN-LF

• Flow Rate: 8 Litres/Minute WELS 3 Star Rated

• Hose Connection Included: ½” and ¼” braided

• Required Hole for the Tap: 33 mm diameter

• Maximum Pressure: 50 - 500* kPa

• Mixer Cartridge Size: 35mm

• Mixer Cartridge Type: Ceramic Cartridge

• Residential Warranty: 15 years^

• Commercial Warranty: 2 years^

Residential 15-Year Warranty: Tap warranty is 2 years parts and labour, plus 13 years parts only. The finish warranty is 2 years. Flexible mixer tails are 5 Years warranty. Warranty excludes normal wear and tear and any misuse according to the user guide.

Commercial 2-Year Warranty: The warranty is 2 year parts and labour.

Finish warranty is 1 year. Warranty excludes normal wear and tear and any misuse according to the user guide.

Commercial installations are all non-residential installations including hotels, motels, schools, hospitals, restaurants and aged care facilities.

*Not suitable for unequal pressure. On high-pressure areas where the pressure exceeds the recommended working pressure as indicated above pressure limiting valves must be installed or the warranty is voided As per Ref. AS/NZS 3500.1-2003, Clause 3.3.4 - 500 kPa maximum static pressure at any outlet within a building. Note: Refer to the Spec Sheet and User Guide for a full breakdown of installation requirements.
