Thermogroup Thermowire Underfloor Heating System

Underfloor Heating provides the most comfortable form of affordable and efficient heating that you could desire for your home. Electric Underfloor Heating is a system where a series of electric heating cables are run below the floor finish. The entire floor then becomes a heater with the heat gently radiating up from the floor into the room. Hot air naturally rises, therefore heating from the floor is the most efficient and effective form of heating and it gently, evenly and silently warms any room creating a comfortable and enjoyable environment.

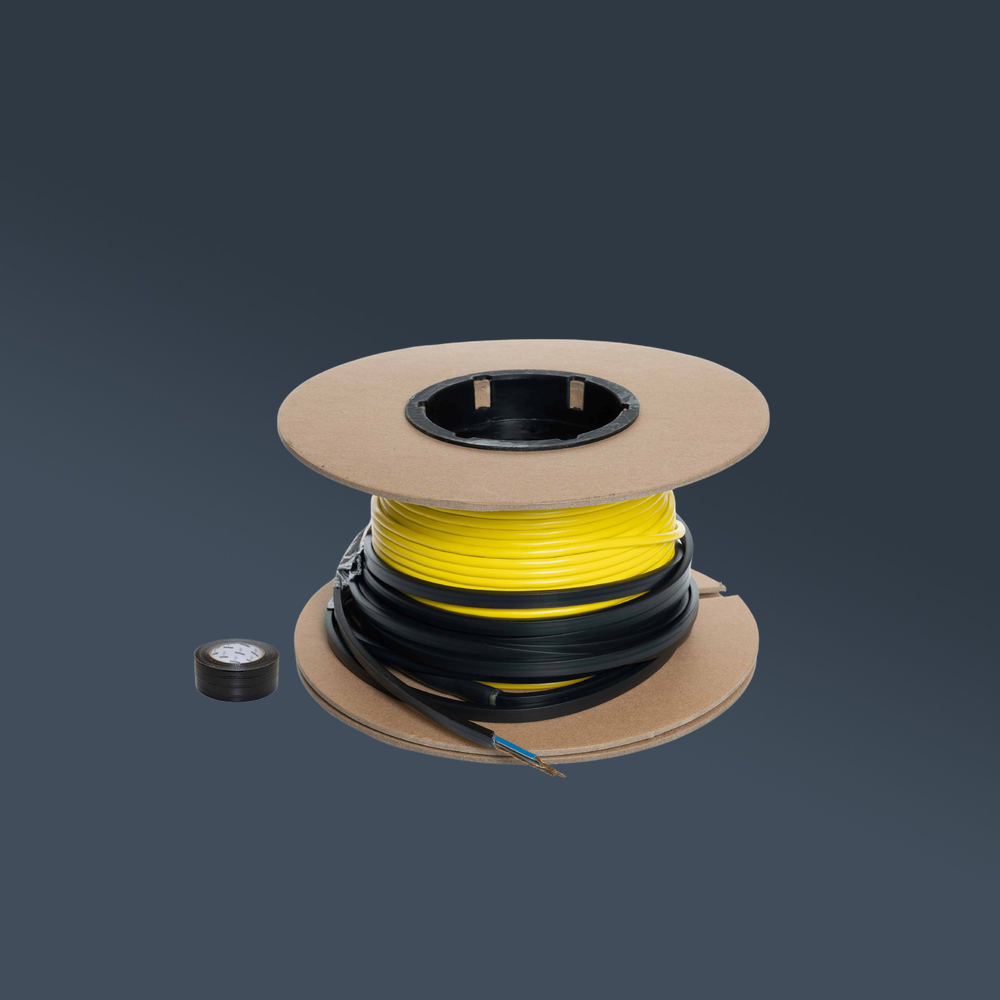

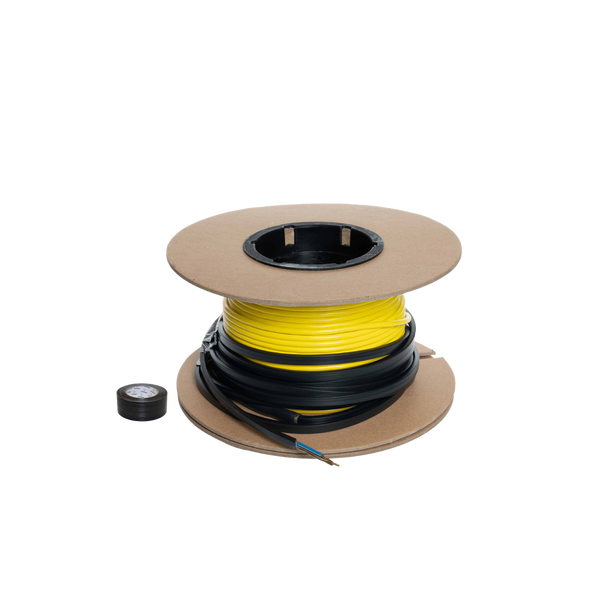

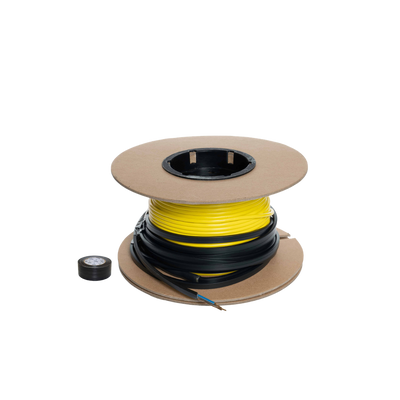

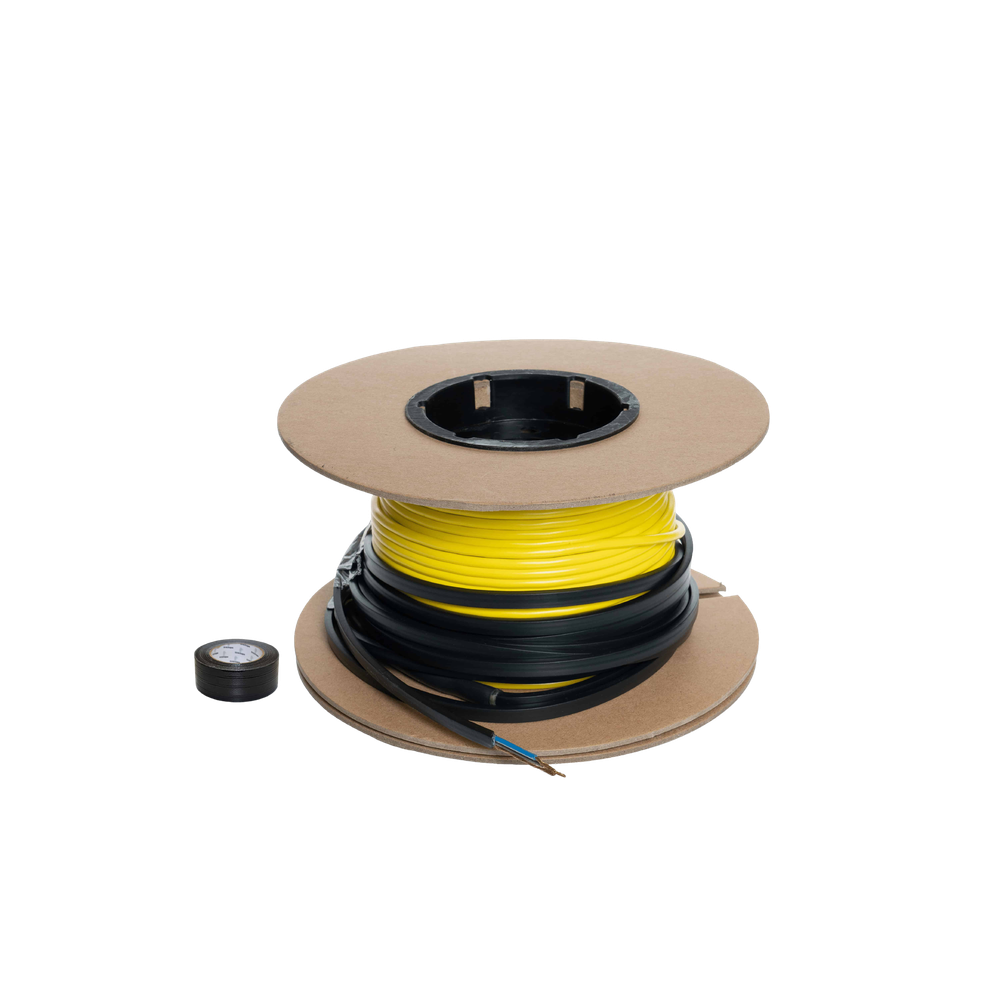

Thermowire is the traditional method of installing Underfloor Heating directly below your tiles utilising a loose wire system. The thin profile of the Thermowire cable means that it can be installed in the layer of tile glue therefore not adding any additional height to your floor build-up. The loose wire system makes the Thermowire cable suited to small, awkward shaped areas or rooms with a lot of floor mounted fixtures that need to be avoided.

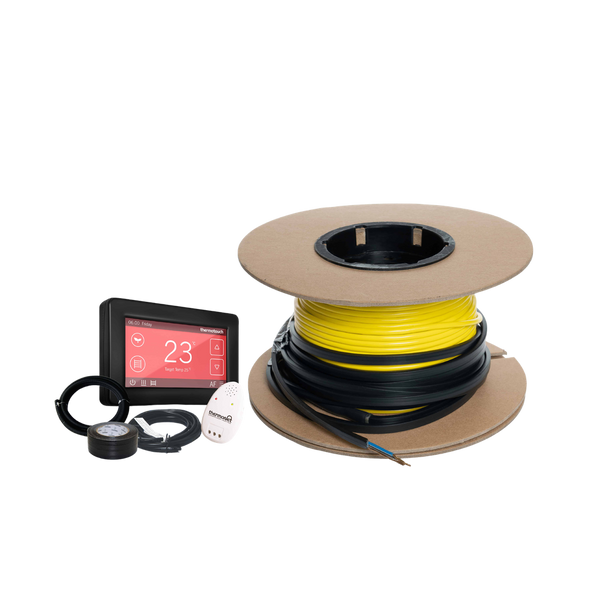

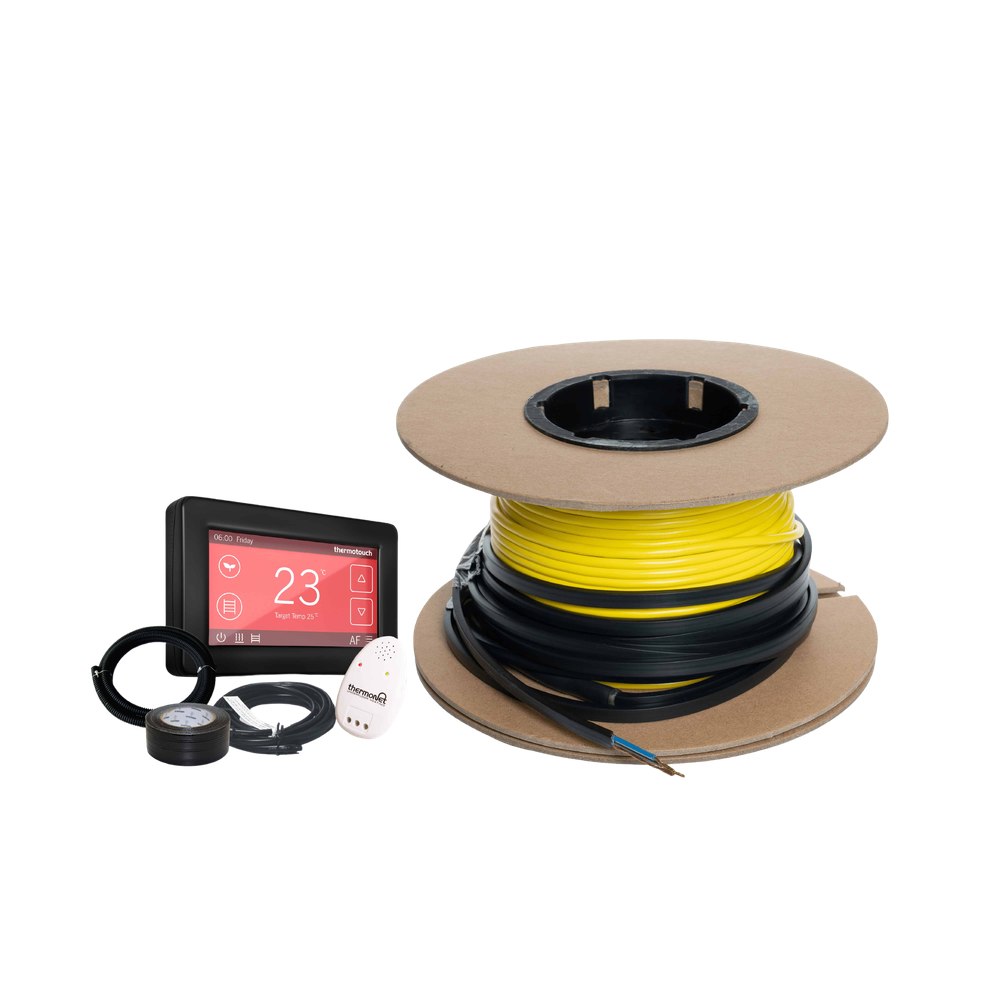

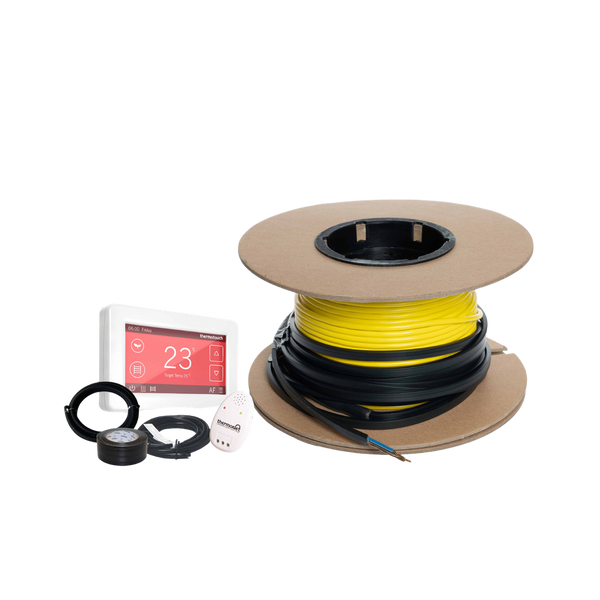

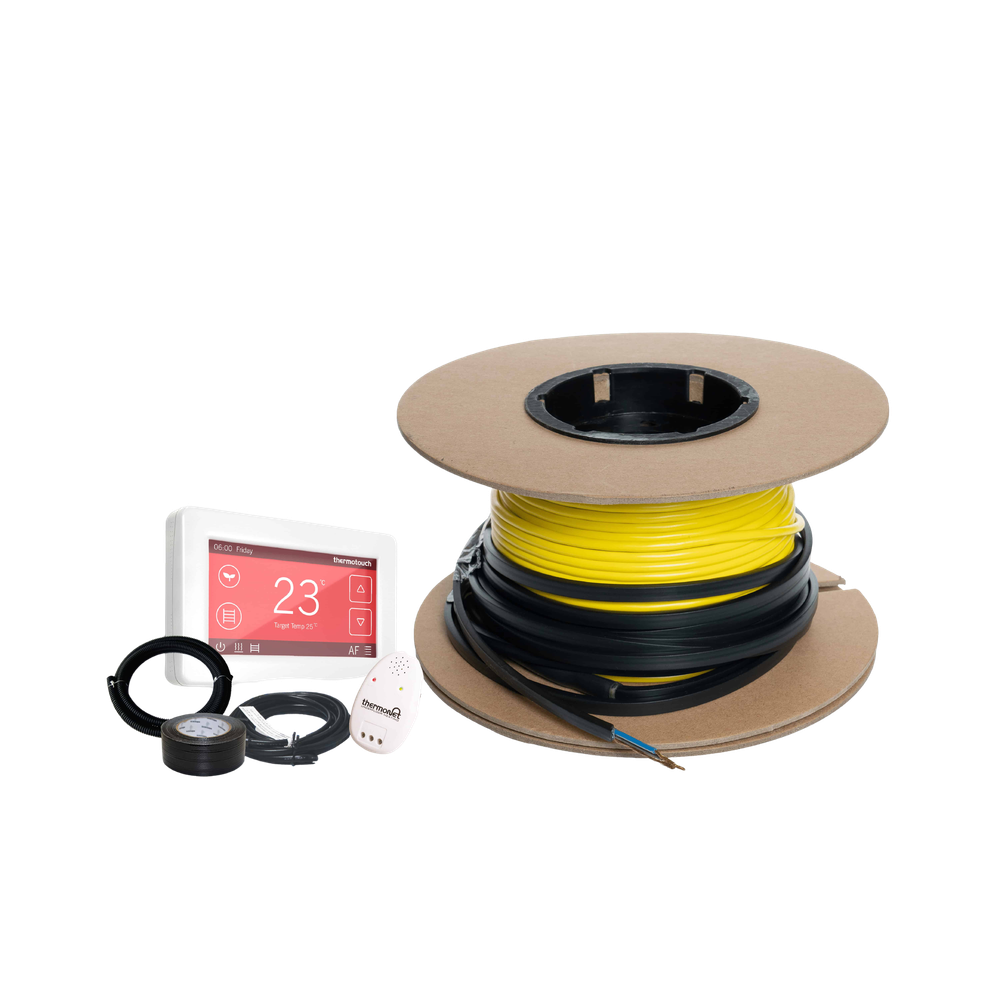

The Thermowire TD Kts include your chosen size of Thermowire heating cable, the Thermotouch 4.3dC white/black dual control 5245 thermostat, a cable monitor and a roll of cloth tape.

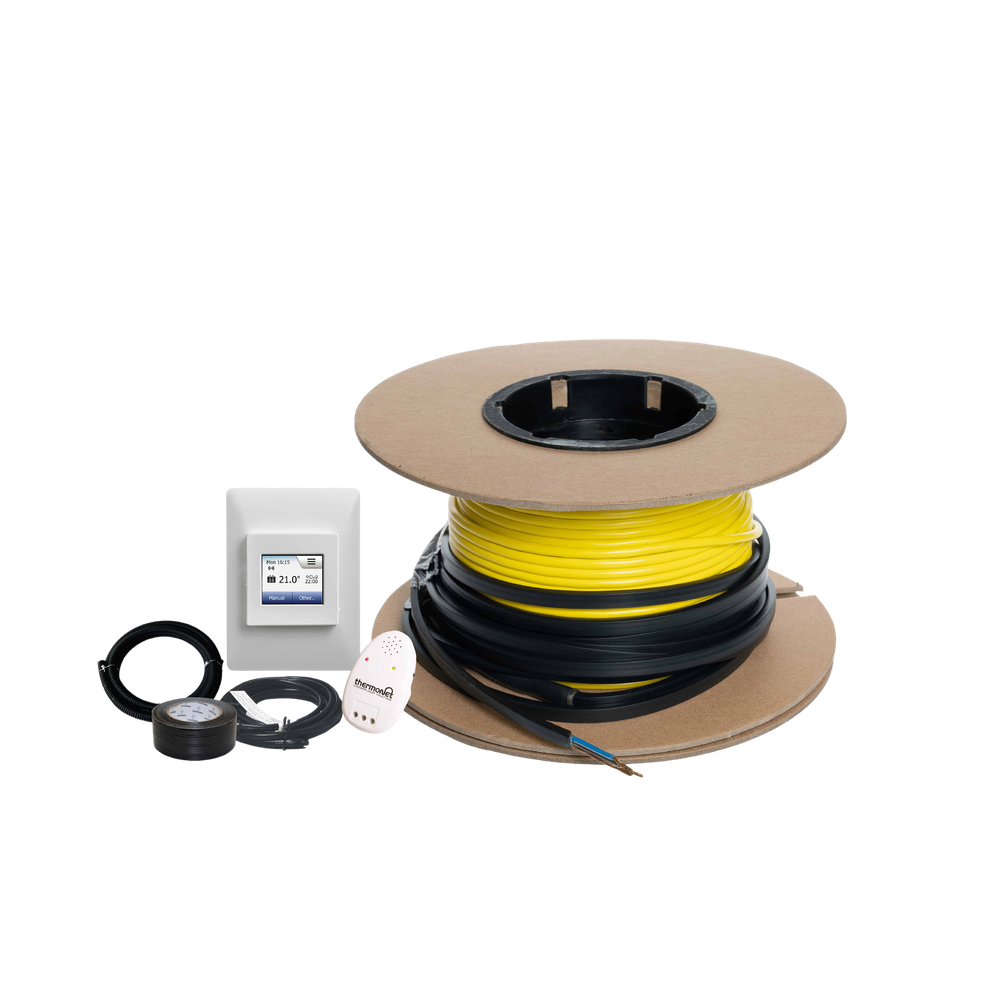

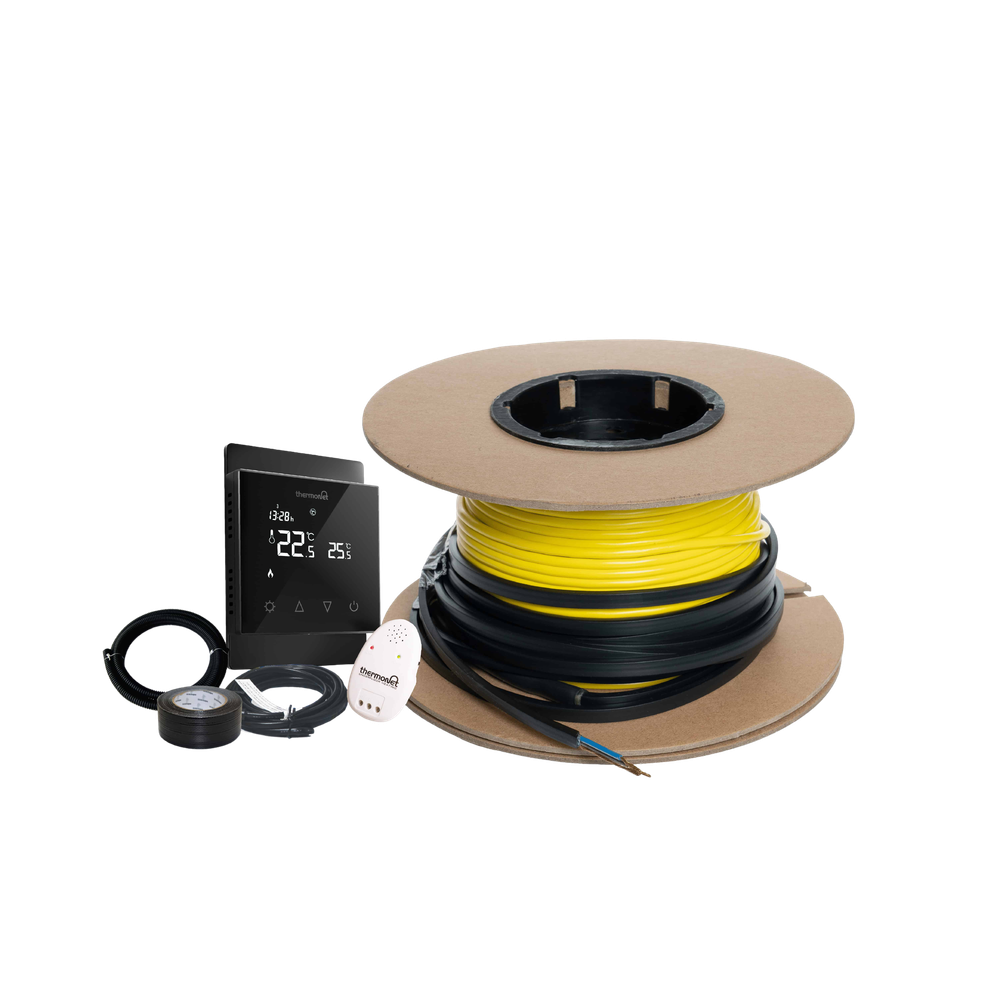

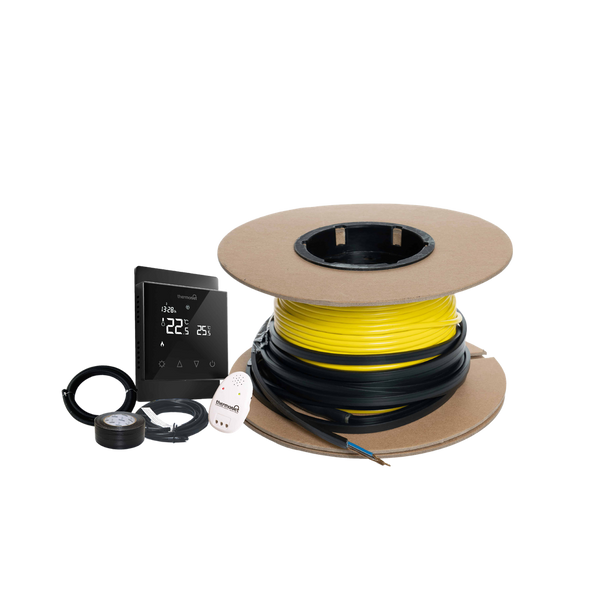

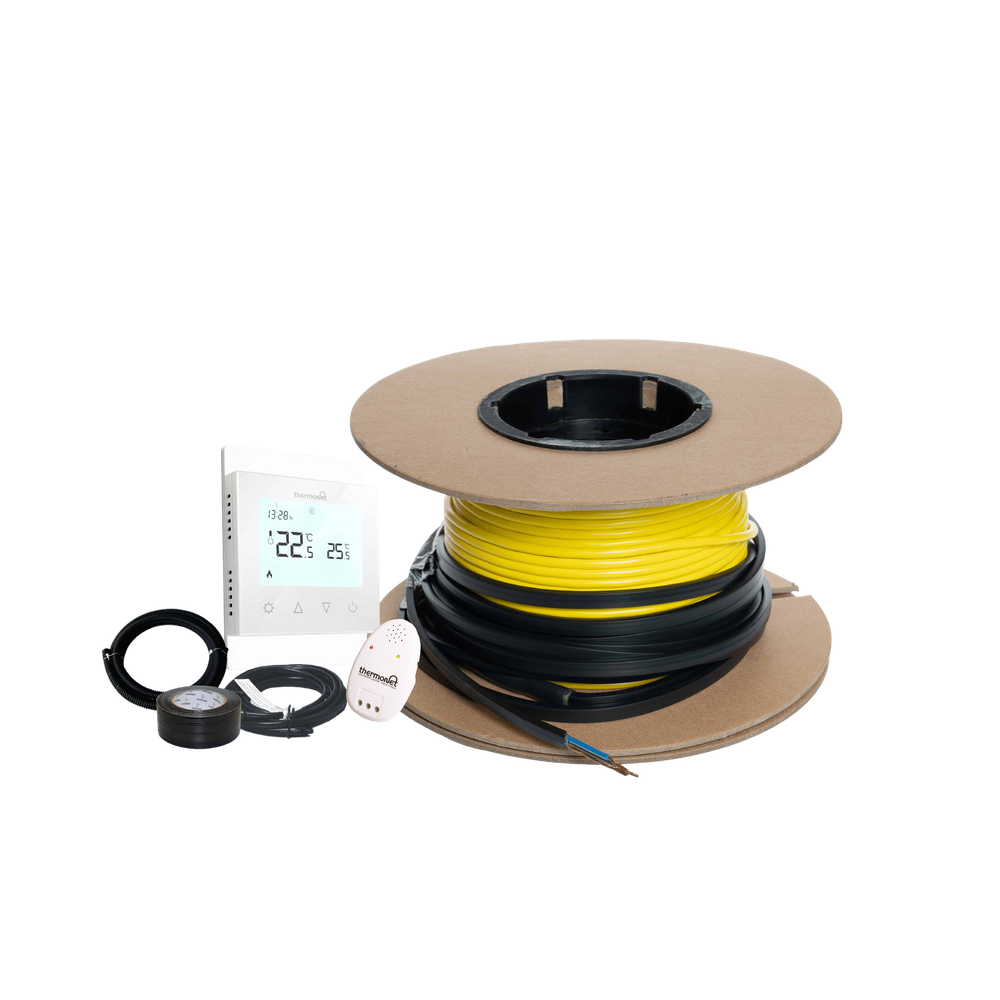

The Thermowire T Kits include your chosen size of Thermowire heating cable, the Thermotouch 7.6iG programmable white/black 5220A thermostat, a cable monitor and a roll of cloth tape.

Thickness: 3.5mm

Max Temperature: 28°C *

Protection Rating: IP68

Warranty: Lifetime Warranty

Conductor Type: Singled Ended

Cold tail length: 5m

• Regulated by floor sensing thermostat

Specifications:

14lm
Area: 1.0–1.4m²
Output: 185 W

22lm
Area: 1.5–2.4m²
Output: 300 W

33lm
Area: 2.5–3.4m²
Output: 450 W

44lm
Area: 3.5–4.4m²
Output: 600 W

55lm
Area: 4.5–5.4m²
Output: 750 W

66lm
Area: 5.5–6.9m²
Output: 900 W

86lm
Area: 7.0–8.9m²
Output: 1200 W

110lm
Area: 9.0–10.9m²
Output: 1500 W

132lm
Area: 11.0–12.9m²
Output: 1800 W

154lm
Area: 13.0–14.9m²
Output: 2100 W

176lm
Area: 15.0–18.0m²
Output: 2400 W
