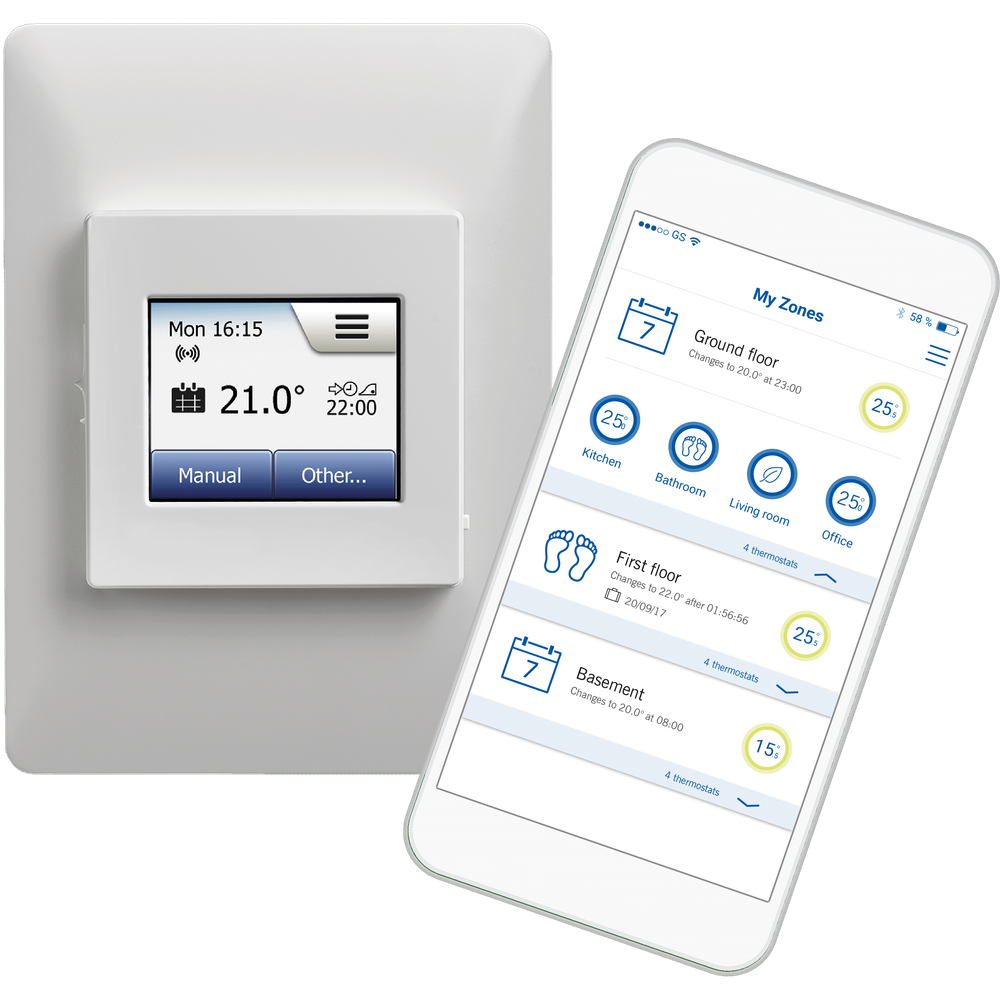

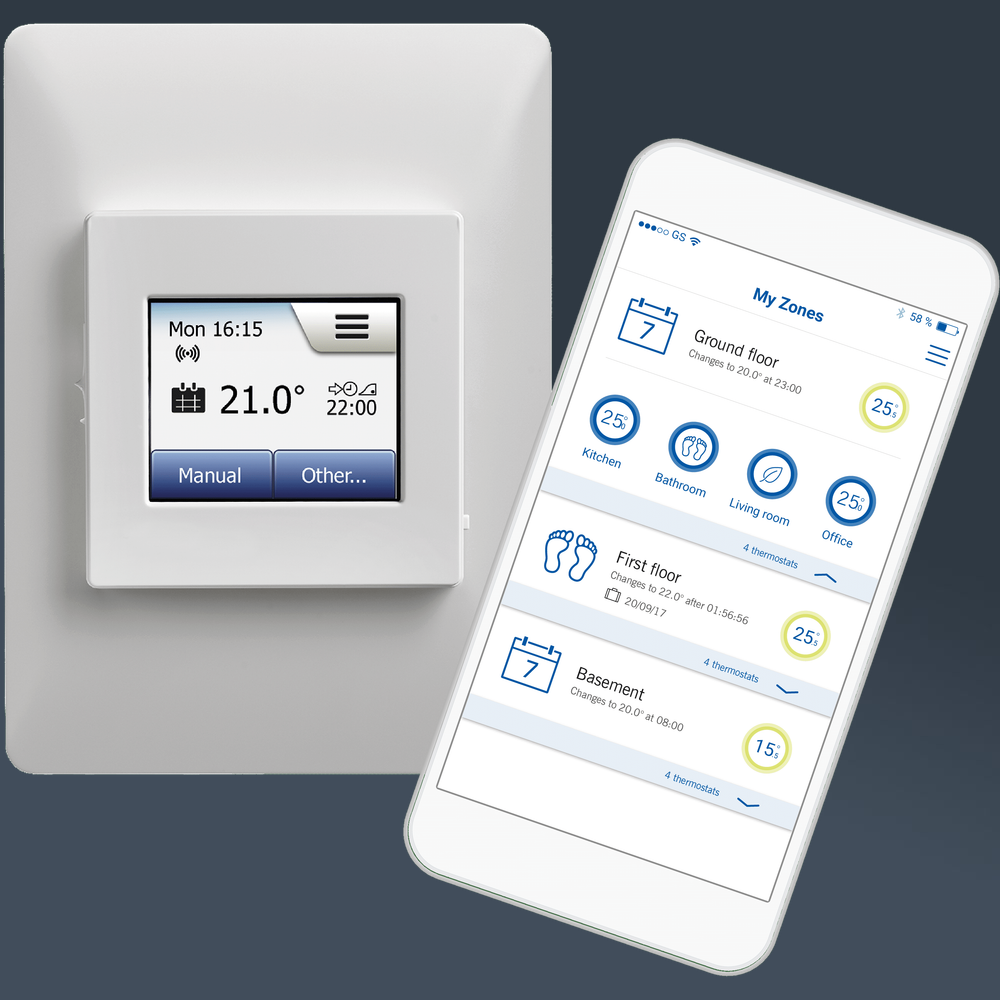

Thermogroup Thermotouch Wi-Fi Programmable Thermostat

• Wi-Fi Enabled- Control from anywhere

  Control your underfloor heating from anywhere via your smartphone*. Control from your apple or android smartphone with the SWATT app. The app allows you to set your heating schedule and adjust your heating mode all via your phone. *Internet connection required

• Control multiple thermostats from one app

  The SWATT app allows you to control multiple thermostats on one app. This effectively allows you to control all the thermostats in your home via the one portal delivering effortless control. You can control up to 32 Thermostats from one app, refer to the FAQ below for further information.

• Multi User Control

  As well as having multiple thermostats controlled by one app, you can also connect up multiple users to the one app. This means all your family members or coworkers can be connected up to control the same thermostats via the app.

• Multiple Heating Modes

  The 5235W features several different heating modes to give you the ultimate control over your heating. The program mode allows you to setup your heating schedule, or you can operate the unit manually with the manual mode, boost your heating for one hour or use the comfort model to select a comfort temperature and your desired number of hours for the heating to operate in this mode.

• Fully programmable

  The Wi-Fi thermostat is fully programable both via the app and on the thermostat unit. This allows you to create your own personalised heating schedule based around your lifestyle and desired comfort levels.

• Portrait or landscape mounting

  The mounting plate on the 5235W allows it to be mounted horizontally or vertically to suit the standard electrical bracket.

• Multiple sensor compatibility

  Thermotouch 5235W is compatible with the most popular floor sensor probes on the market, making it suitable to upgrade your current thermostat. It also includes a built-in ambient sensor which can be used as an alternative to the floor sensor.

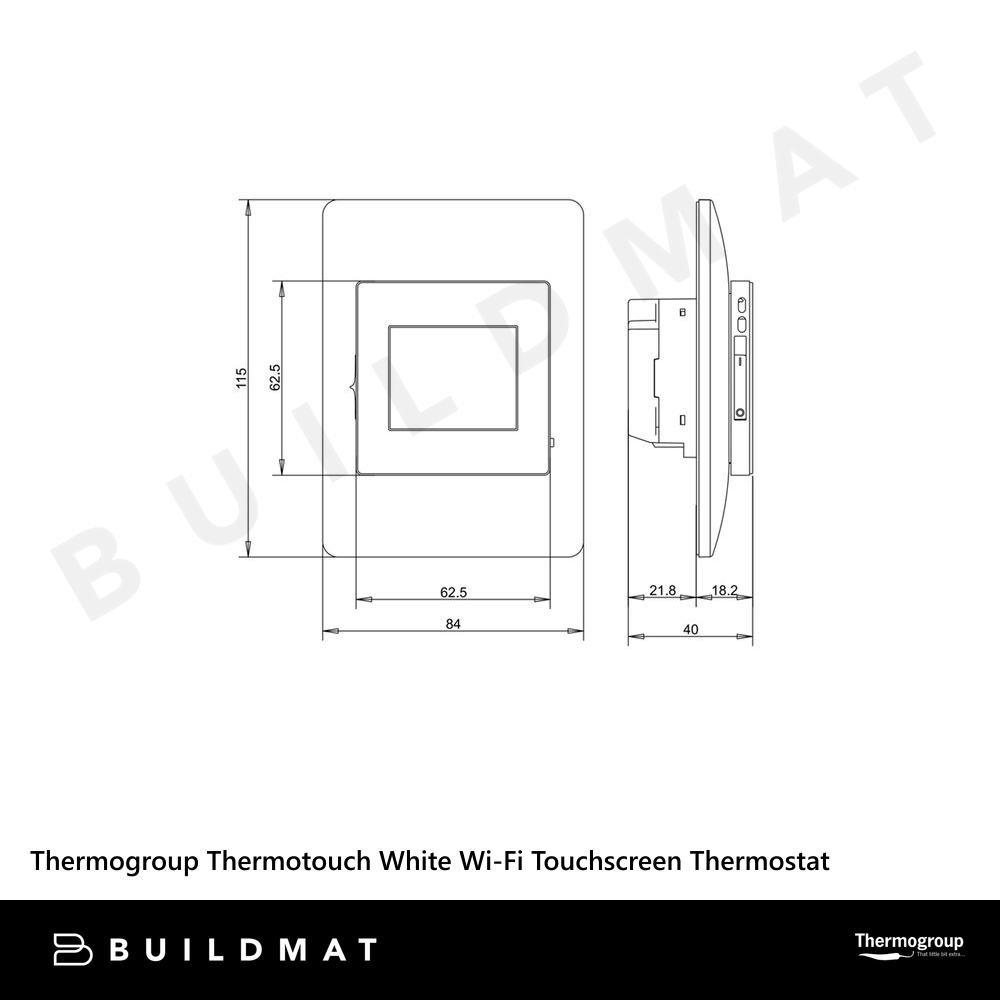

Size:W84 x H115 x D40mm (22mm in wall)

Protection Rating: IP21

Max Load: 16A

Orientation: Landscape or Portrait

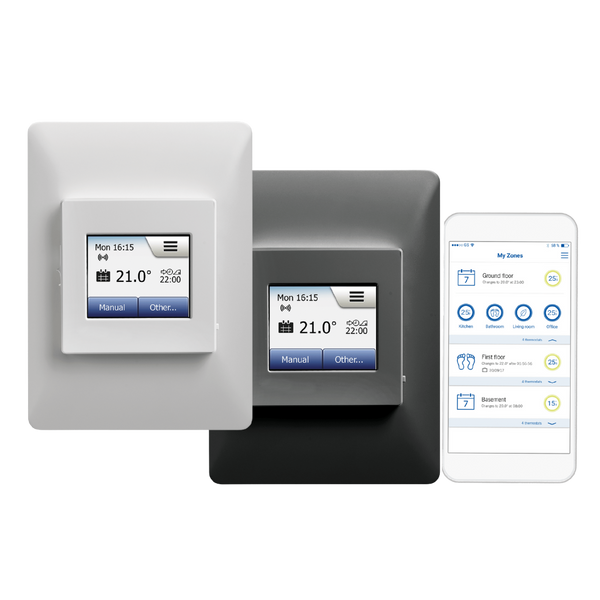

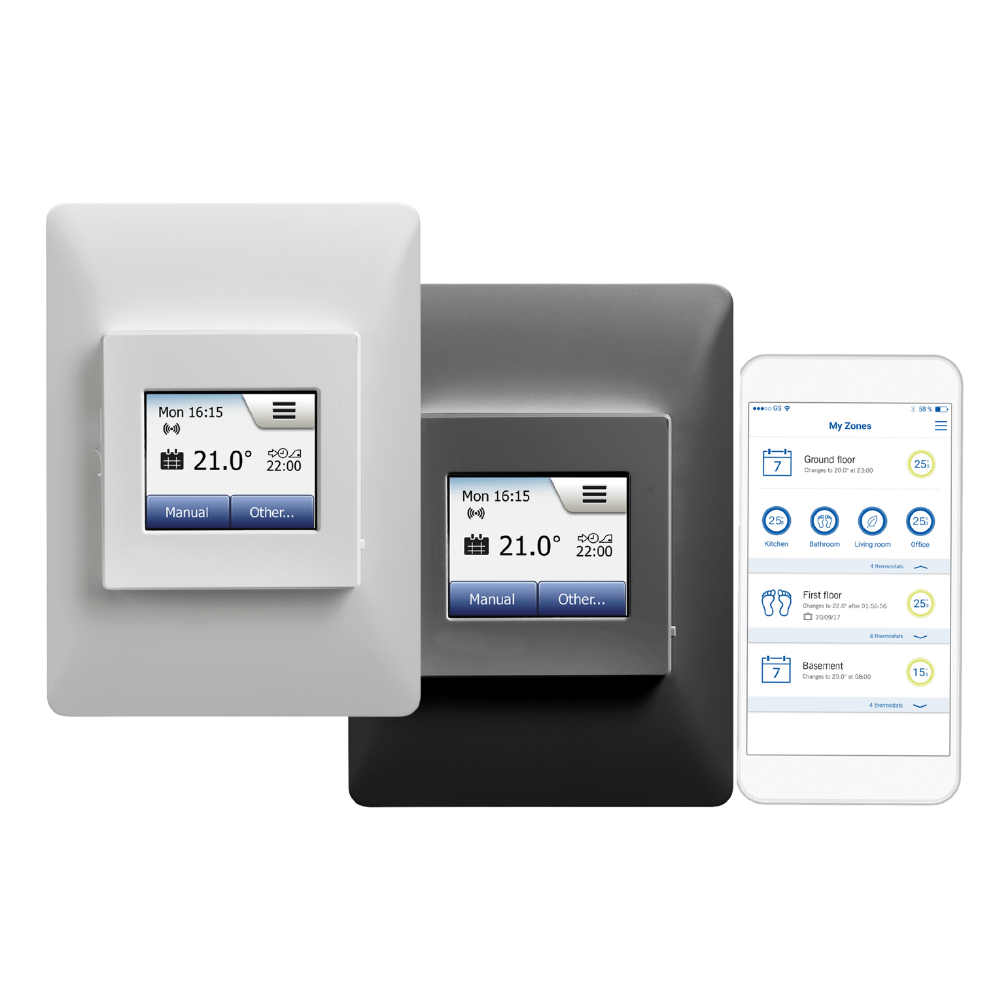

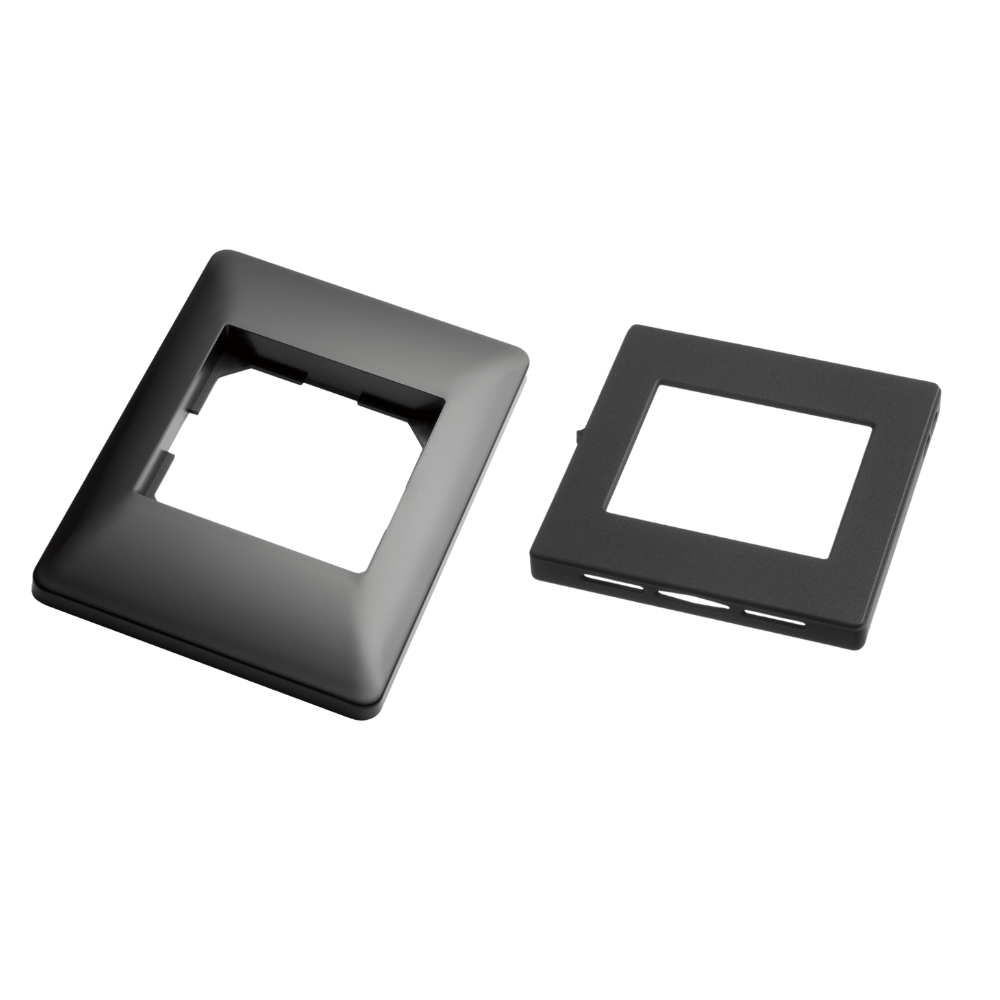

Colour: White (Black facia plate available)

Temperature Range:5 ~ 40°C (0.5°C increments)

Sensor Rating:NTC 12kΩ 25°C

Warranty:3yrs

Wi-Fi:IEEE 802.11 b/g/n - 2.4GHz

Display:176x220 pixels TFT - resistive touch
