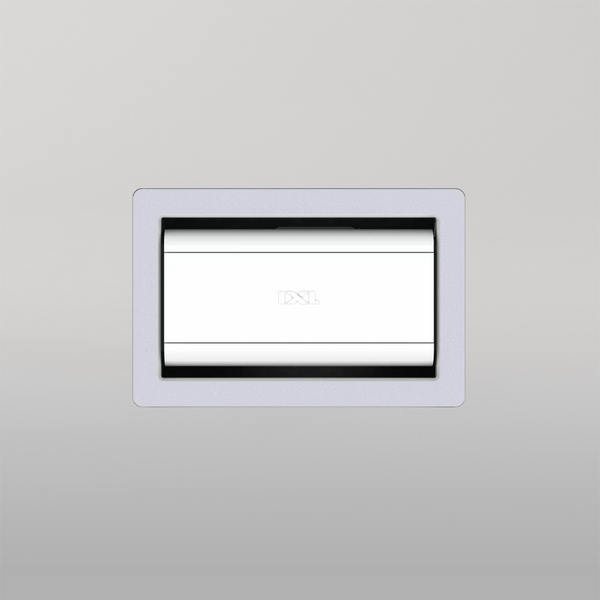

IXL Tastic Luminate Vent - Bathroom Exhaust Fan - Silver

Tastic Luminate Vent module features a sleek and contemporary fascia design, with powerful 400m3/hr airflow extraction. Proudly designed and manufactured in Australia.

Tastic Luminate Vent module is suitable for above shower installation with an IPX4 rating. Position it over the shower, in the bathroom, laundry, toilet or powder room to banish odours and water vapour effectively, without the need for a bulky extraction fan.

This product is a ventilation fan only. There is no heat or light.

Tastic Luminate is compliant with NCC in Australia, and G4 Building Codes and Healthy Home Standard for bathrooms and kitchens in New Zealand.

UPC: 9332048028892
Finish/Colours: Silver
Airflow Extraction (m3/h): 400
Ducted: Yes
Back Draught Flaps: Yes
Clearance Required above Unit (mm): 30
Current Ratings (Amps): 0.4
Cutout Size (mm): 214 x 332
Exhaust Capacity (l/s): 111
Exhaust Capacity (m3/h): 400
Fan Size (mm): 170
Fascia Dimensions (mm) : 243W x 367D
Inline Fan Ducted to Outside: Yes (6m of ducting included)
IP Rating: IPX4
Made in Australia: Yes
Max. Height of Unit (mm): 215
Supply (Volts): 240
Area Suitability in Room without Shower: 20.8m2
Area Suitability in Room with Shower: 8.3m2
Total Ceiling Cavity Required (mm): 245
Watts (Fan in Brackets): 0 (75)
Weight of Unit (kg): 4.2
Power Cable Length (m): 1.2
Unit Dimensions (mm): 367 W x 243L x 200D
