Puretec Hybrid-P1 All in One Filtration System

HYBRID-P1-LT

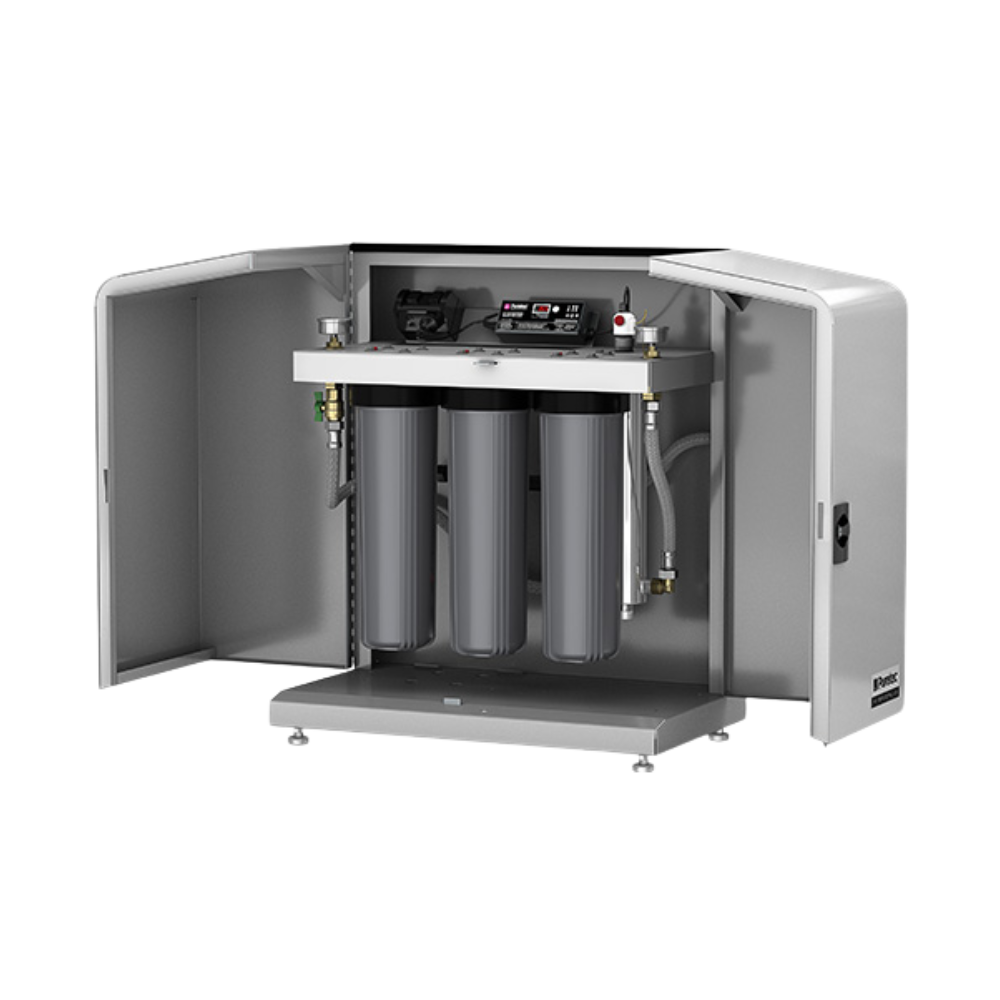

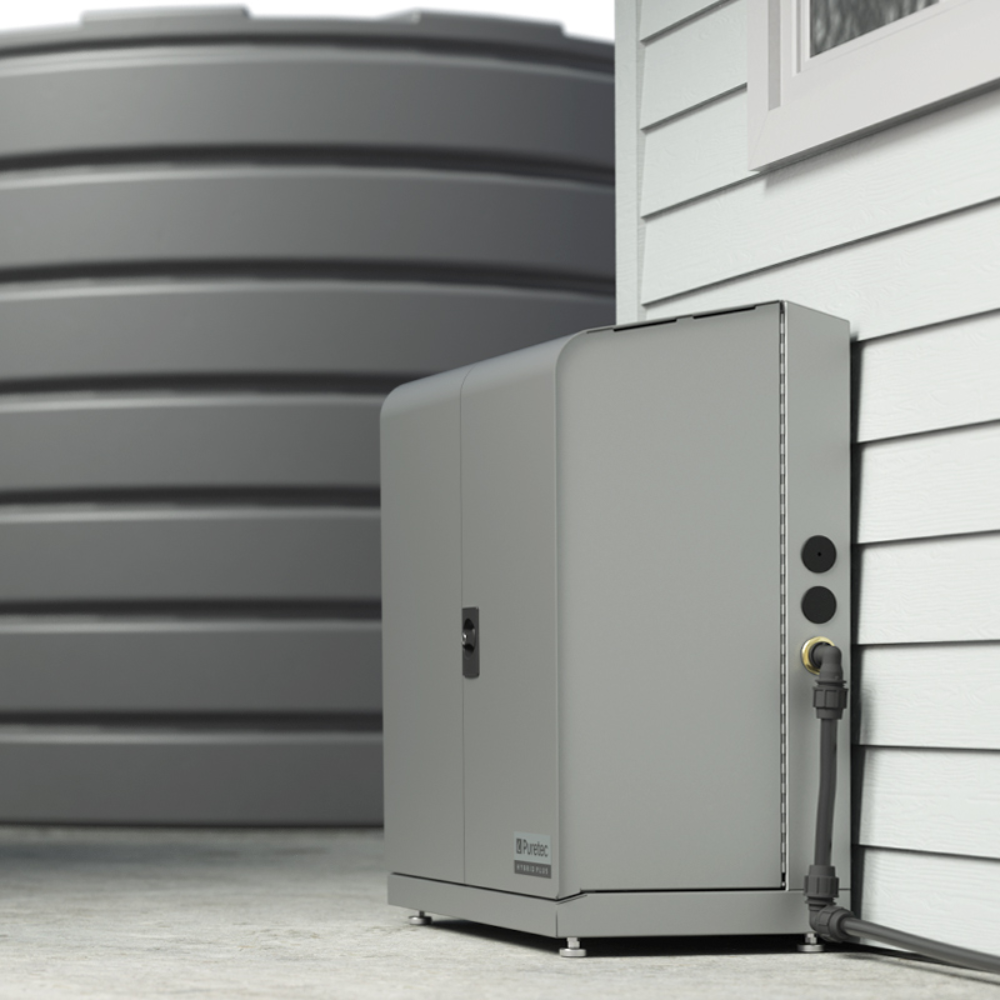

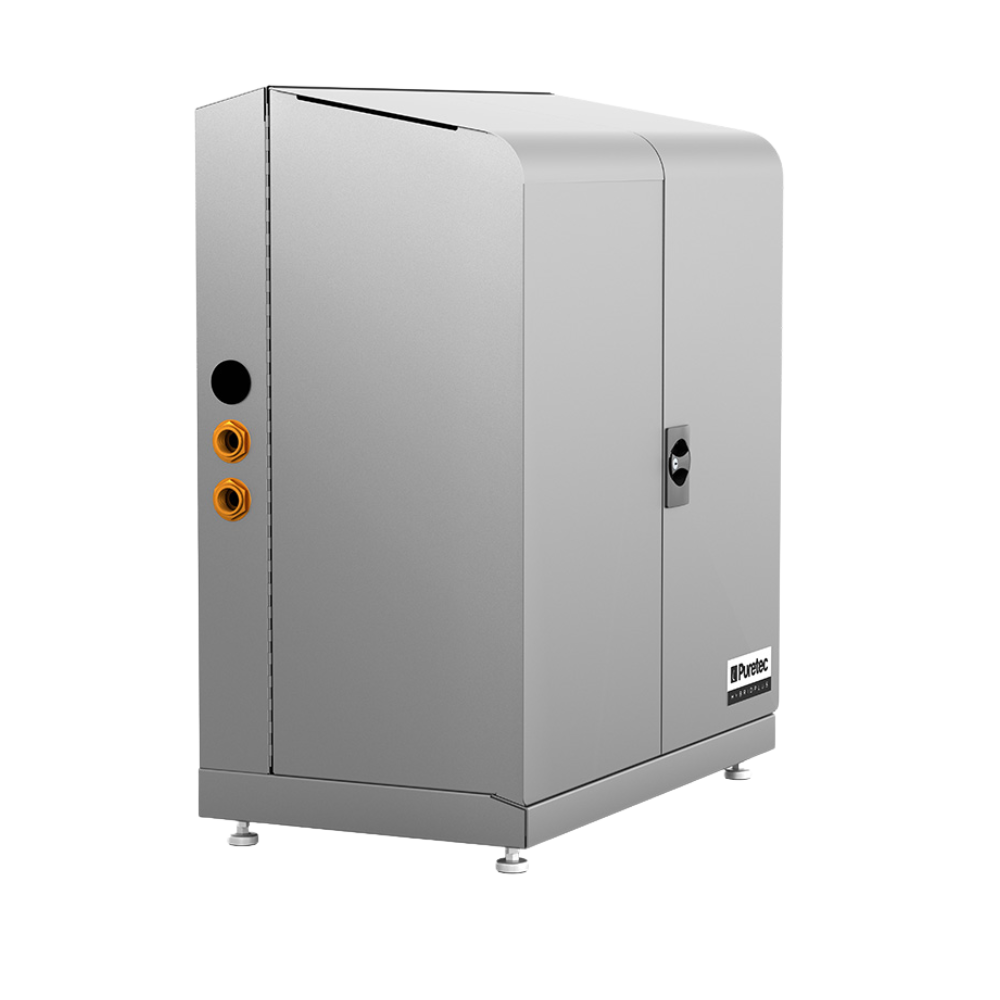

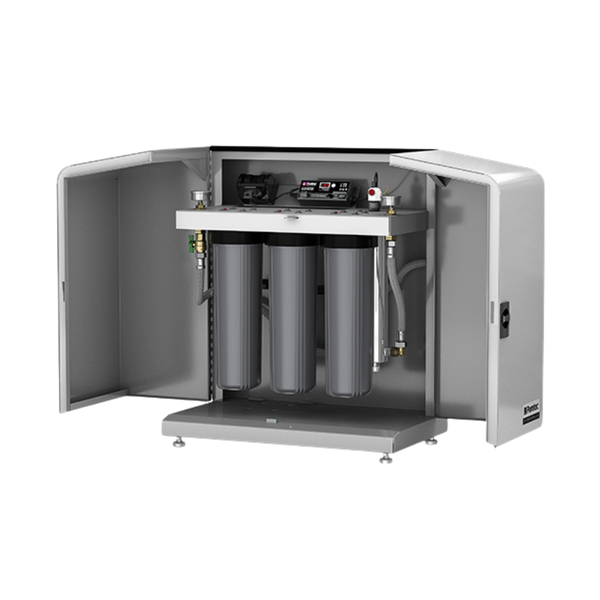

The Puretec Hybrid-P1 is an all-in-one filtration system with pump provision, 3 stage filtration and finishing with UV sterilisation. This sleek, practical and high-quality system ensures you have pressurised safe and delicious rainwater. The patented HybridPlus system is designed to sit neatly against a wall, fence or tank, or can also be freestanding. It features a lockable cabinet with gull-wing style access doors for ease of access for maintenance and also incorporates adjustable feet to ensure a neat and tidy finished installation.

Note: This model does not include a pump or switchover valve but has the allowance to install your own pressure system into the unit.

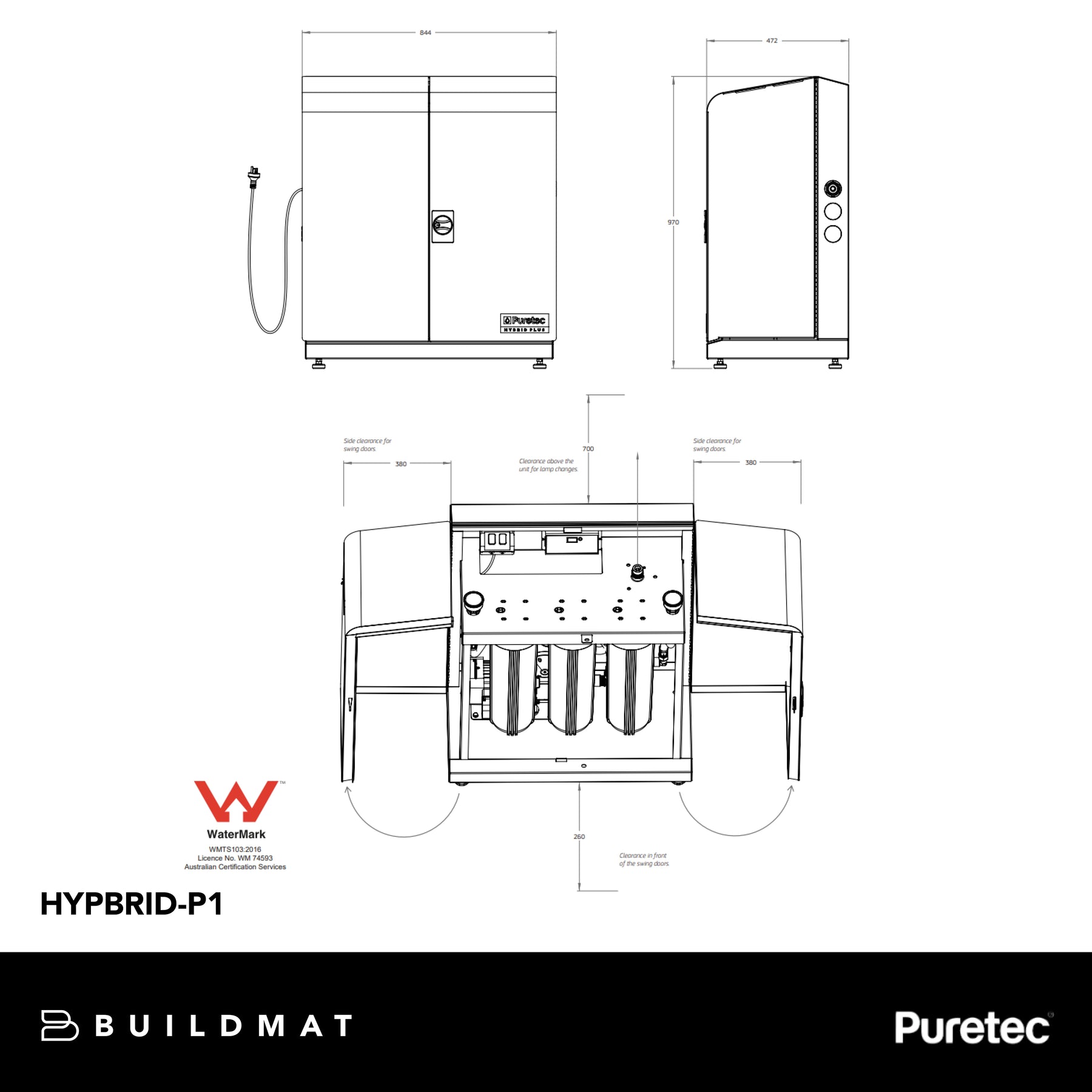

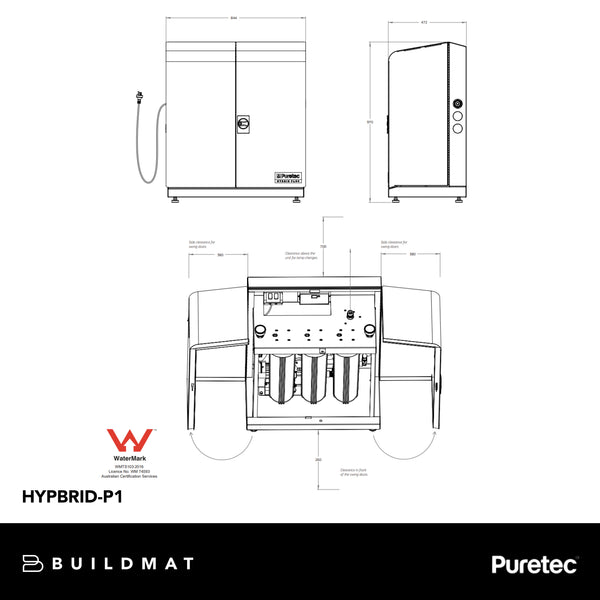

Max pump dimensions: 560 (H) x 540 (W) x 240 (D) mm

Features and Benefits

• Designed specifically for rainwater, the Puretec HybridPlus is a plug & play package with pump provision, filters & UV in one unit that is weatherproof, rodent-proof and tamper proof.
• Bacteria protection - Kills 99.99% of E. Coli, Giardia and Cryptosporidium Cysts with Radfire™ ultraviolet technology, natural process that’s completely eco-friendly and chemical-free.
• Unique connection system so that water flow can be connected to the left or right-hand sides for fast, easy and neat installation.
• Patented cabinet with gull-wing style access doors looks great whilst providing easy access for maintenance, is corrosion resistant and lockable to prevent tampering.
• Neatly concealed ventilation to allow airflow and heat dissipation.
• Pump provision to allow for your own pump installation and compatible with a range of pumps.

Specifications

• Ordering Code: HYBRID-P1-LT
• Replacement Cartridge(s):
  Stage 1 filtration
  Code: PL05MP2
  Stage 2 filtration
  Code: CB05MP2
  Stage 3 filtration
  Code: PX01MP2
  UV Lamp
  Code: RL6
  Quartz Sleeve
  Code: RQS6
• Grundfos pump model: not included
• Rated power: N/A
• Pressure controller: PM2
• Mains to rains controller: not included
• Power Supply: 220-240 VAC / 50 Hz
• Water temperature range: 0-52°C (protect from freezing)
• Self-priming: 4 m
• UV dosage @40mJ/cm2: 54 Lpm
• UV dosage @30mJ/cm2: 70 Lpm
• UV dosage @16mJ/cm2: 130 Lpm
• Connection 1” BSP [25mm]
• Warranty: 3 years^
