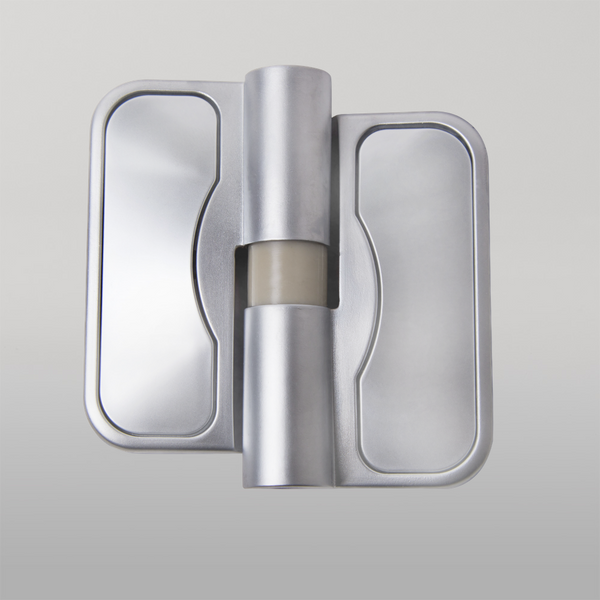

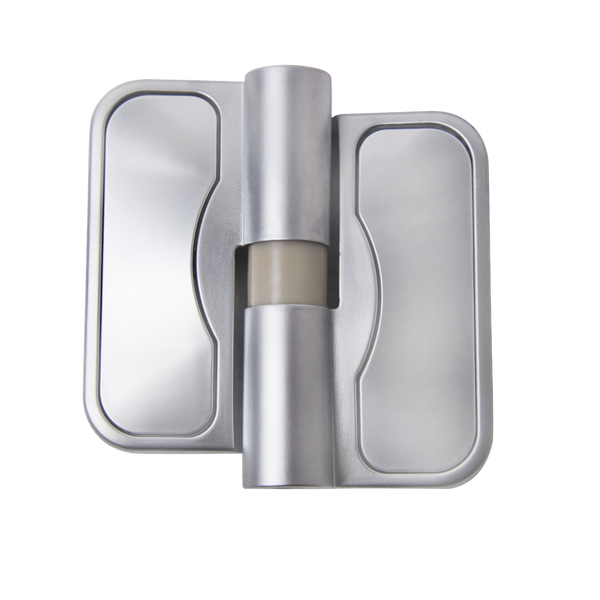

Metlam Moda Gravity Hinge In Antimicrobial
Left Hand
Right Hand
Specification. Material: Diecast Zinc, Alloy ZP3, Brass Shaft, Nylon Inserts, ABS Snap-On Covers, Finish: Antimicrobial Coating. Mounting: Concealed Screw Fix or Bolt Through. Features: The step on the back of the hinge plus an increased vertical nylon drop allows for better movement from the gravity function., The nylons are set so the door can move past 90° whilst still functioning correctly.
Read more
Specification
Material:
- Diecast Zinc, Alloy ZP3
- Brass Shaft
- Nylon Inserts
- ABS Snap-On Covers
Finish: Antimicrobial Coating
Mounting: Concealed Screw Fix or Bolt Through
Features:
- The step on the back of the hinge plus an increased vertical nylon drop allows for better movement from the gravity function.
- The nylons are set so the door can move past 90° whilst still functioning correctly.
- The nylon cover on the barrel keeps foreign substances from penetrating the pins and nylons allowing for a smoother opening and closing.
- Interchangeable hinge covers including Moda Spring Hinge.
- The fixing holes correlate with the bolt-through faceplates making installation a breeze.
- Reversible Hold Open / Hold Closed
- Lift off capability
Load Rating:
- 15Kg per hinge
- For optimum performance -
- 2 hinges per door up to 30Kgs
- For doors over 30Kg allow for 15Kg per hinge
- Note: 3 Hinges per door is recommended to prevent door bowing
