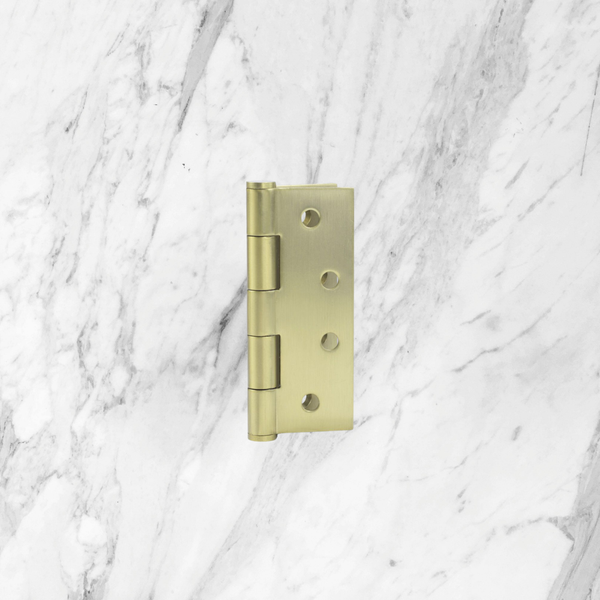

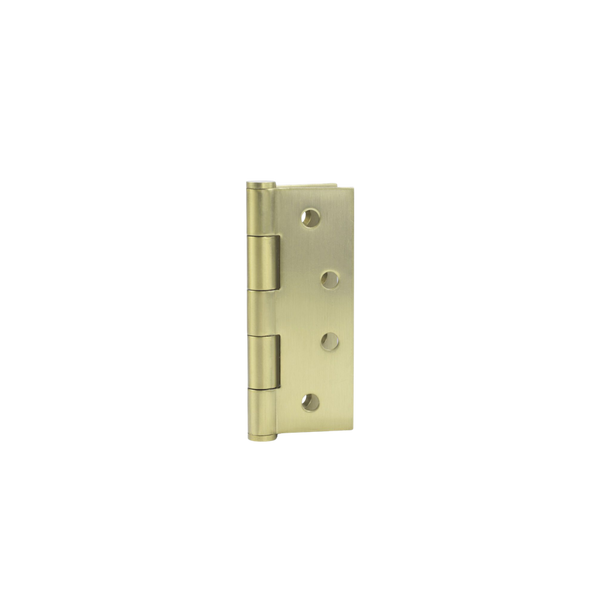

Lockwood Loose Pin 100 x 75 Hinge Satin Brass

The Lockwood Vivid® Collection 100 x 75 x 2.5mm Commercial Loose Pin Hinge in PVD Satin Brass is a fire-rated, 60 kg rated butt hinge for internal hinged doors in commercial and premium residential applications, part of the Vivid® Collection coordinated hardware range, backed by a 25-Year Mechanical Warranty.

The VIV75LP is manufactured from 304 stainless steel and finished in PVD Satin Brass via Physical Vapour Deposition (PVD) treatment. The loose pin design allows the door to be lifted clear of the frame without removing screws - useful for painting, maintenance or installation. Available in PVD Satin Brass, PVD Satin Gun Metal and PVD Satin Bronze to coordinate with the full Vivid Collection range.

Features and Specifications

• Finish: PVD Satin Brass, applied via Physical Vapour Deposition (PVD) over 304 stainless steel

• Size: 100 x 75 x 2.5mm.

• Includes: 1x hinge
• Rated to a maximum adjusted door weight of 60 kg

• Fire rated to AS1905.1-2015

• Type: Butt hinge with removable loose pin for tool-free door removal

• Material: 304 stainless steel

• Supplied with 8 x M5x32 wood screws, 8 x M5x50 wood screws and 8 x M5x12 metal thread screws per hinge

• 25-Year Mechanical Warranty
