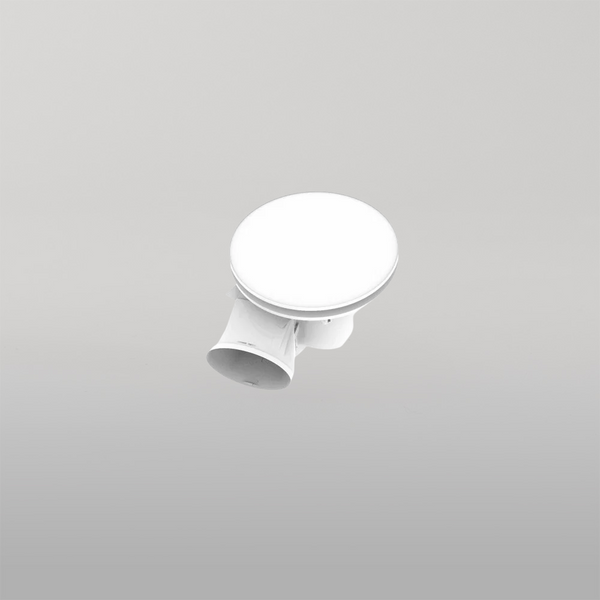

IXL Ducted Ventflo Ceiling Fan 250mm

The Ducted Ventflo Ceiling Exhaust Fan is designed to fit a ceiling cavity with a minimum height of 242mm and has a 150mm diameter duct outlet.

The Ducted Ventflo Fan works by drawing air from the room, and as with all exhaust fans, it is essential that sufficient air inlets exist through windows, vents or under doors.

Ducted Ventflo is compliant with New Zealand G4 Building Codes and Healthy Home Standard for bathrooms and kitchens.

UPC: 9332048029585
Airflow Extraction (m3/h): 360
Aluminium Flexi Ducting: 150 (not included)
Back Draught Flaps: Yes
Clearance Required above Unit (mm): 242
Cutout Size (mm): 295
Exhaust Capacity (l/s): 100
Exhaust Capacity (m3/h): 360
Fan Size (mm): 250
IP Rating: IP24
Min. Ceiling Height (m): 2.1
Product Installation: Can be installed directly above a shower
Suitable for Wet/Steamy Area: Yes
Supply (Volts): 220-240
Fan Wattage: 60
Area Suitability in Room with Shower: 7.5
