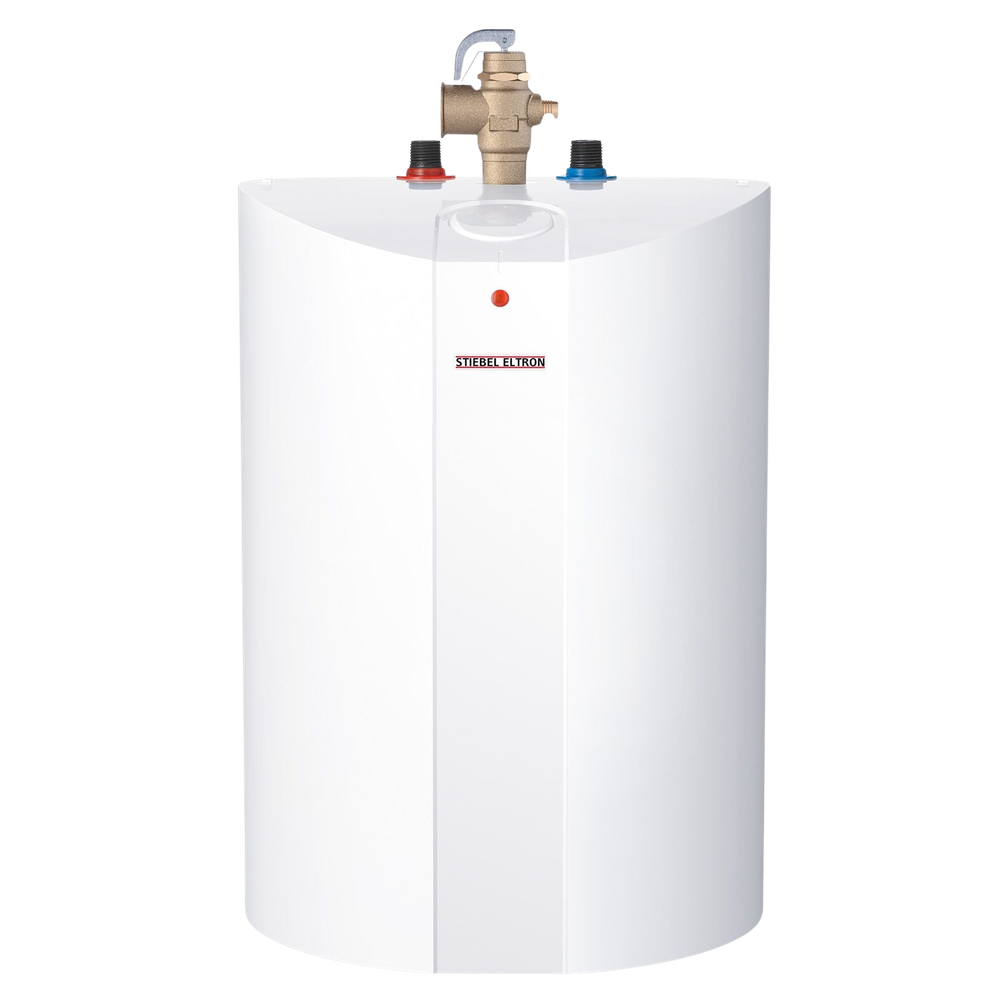

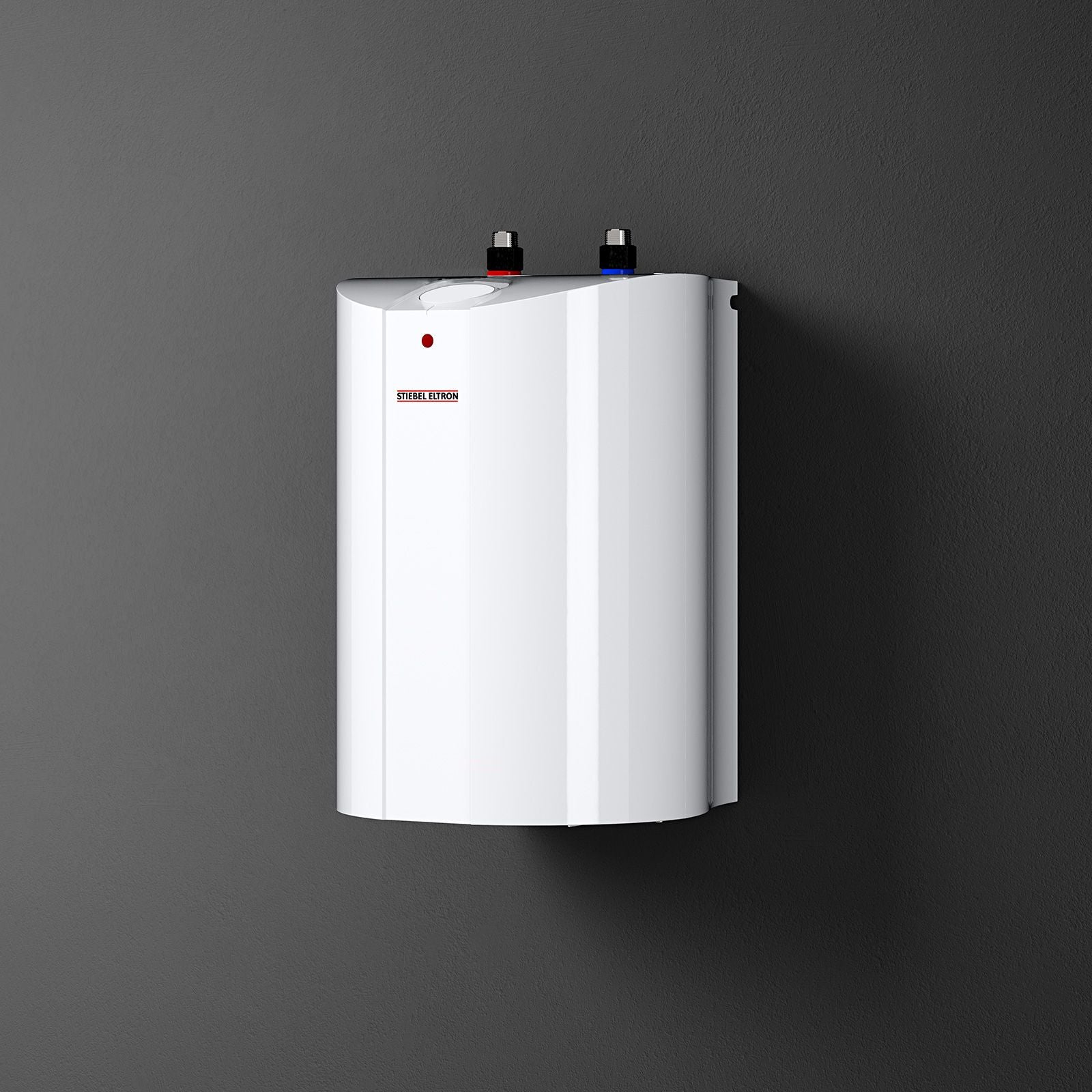

Stiebel Eltron 10 Litre Mains Pressure Compact Storage Water Heater

Hot water right at the point of use, ideal for multiple outlets
The STIEBEL ELTRON SHC 10 AU and SHC 15 AU under bench mains pressure water heaters deliver hot water quickly to multiple sinks or basins. These point-of-use water heaters eliminate long runs of pipework for isolated sinks and basins and can greatly reduce the waiting time for hot water to arrive at the outlet. Installed directly underneath the basin or sink these water heaters are compact in design to take up less space in the cupboard.

Product Features:

• Point of use installation
• Space-saving under bench installation
• Ideal for multiple outlets
• Suitable for use with all taps
• Includes PTR valve and reducing bush
• Wall-mounted design to easily adjust height
• Insulated design minimises heat losses
• Temperature set at 60°C
• Operates on 6.5 Amp 230V, plugs into power point

High quality design

• Certified enamelled steel tank manufactured by STIEBEL ELTRON
• Designed for 2+ fixture outlets
• WaterMark approved. Lic No. WMKA00301, AS3498

Energy and water saving

• Low minimum standby power consumption
• Installed close to the point of use helps save water

Easy installation

• Compact space saving design
• Installed underneath sinks or basins, ideal for mulitple points of use
• 230V - 3 pin power cord with earthed plug 6.5 Amp
• Operates with all WELS approved tapware
• Install Note - Safe Tray and drain required as per AS/NZS 3500.4.2 & local requirements

Warranty

• 5 year cylinder, 3 year parts & labour and 1 year PTR valve domestic water heater warranty*

*Conditions apply - refer warranty policy for full details.

Technical Data

• Rated output: 1.6 kW
• Rated voltage: 230 V / plugs into GPO
• Rated current: 6.5 Amp
• Phases: 1/N/PE
• Electrical Installation: As per AS/NZS3000
• Installation requirements: AS/NZS3500.4.2 & local requirements
• Permissible operating pressure: 600 kPa (supplied PTR valve = 700 kPa)
• Temperature setting: 60°C
• Tank capacity: 10 Litres
• Mixed water volume at 40°C from single draw off: 15.3 Litres
• Standby energy consumption / 24 hours at 65°C: 0.5 kWh
• IP Rating: IP24 D

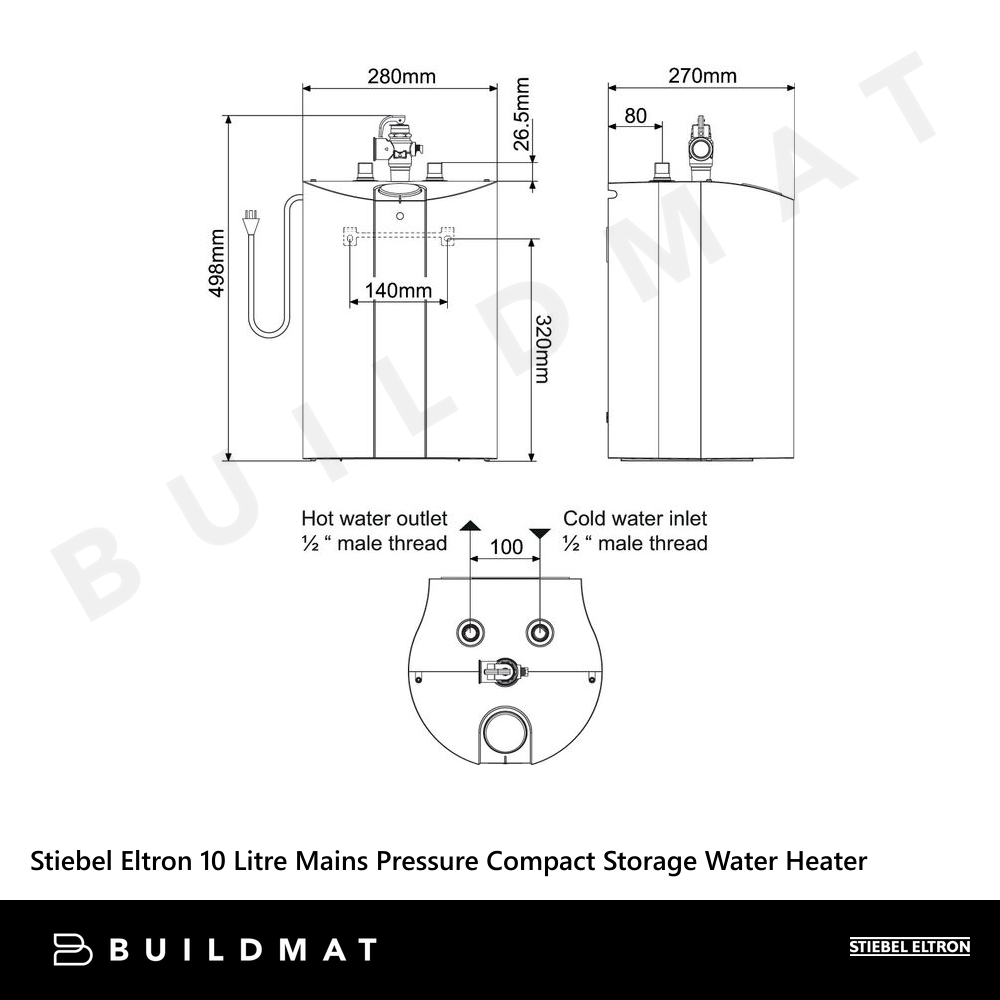

• Height (incl. PTR valve): 498 mm
• Width: 280 mm
• Depth: 270 mm
• Weight (filled with water): 17.2 kg
• Colour: white
• Approvals: WaterMark Lic No. WMKA00301, AS3498
• For multiple draw off points: Yes
